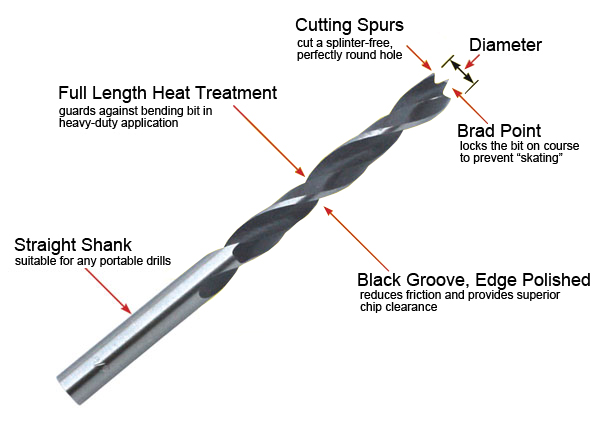

Brad Point Wood Bits/
3 Points Wood Bits
* made of high carbon
steel or chrome vanadium (crv) with brad point and 2 shouldered
cutting spurs.
* centre point enters first; prevents "skating".
* cutting flutes are engineered for optimum chip ejection so drill
will not bind and burn out.
* for drilling accurate, splinter-free holes in soft wood, hard
wood, plywood and hardboard.
* use in hand drills, electric portable drills, drill presses and
lathes.
Metric
|
D |
OAL |
Shank D. |
D |
OAL |
Shank D. |
|
3 |
60 |
3 |
15 |
150 |
10 |
|
4 |
75 |
4 |
16 |
160 |
10 |
|
5 |
85 |
5 |
17 |
160 |
13 |
|
6 |
90 |
6 |
18 |
160 |
13 |
|
7 |
105 |
7 |
19.0 |
160 |
13 |
|
8 |
115 |
8 |
20.0 |
160 |
13 |
|
9 |
120 |
9 |
21.0 |
160 |
13 |
|
10 |
120 |
10 |
22.0 |
160 |
13 |
|
11 |
150 |
10 |
23.0 |
160 |
13 |
|
12 |
150 |
10 |
24.0 |
160 |
13 |
|
13 |
150 |
10 |
25.0 |
160 |
13 |
|
14 |
150 |
10 |
26.0 |
160 |
13 |
Inch
|
D |
OAL |
Shank D. |
D |
OAL |
Shank D. |
|
1/8" |
2-3/8" |
1/8" |
23/64" |
4-25/32" |
23/64" |
|
9/64" |
2-7/8" |
9/64" |
3/8" |
5" |
3/8" |
|
5/32" |
3-1/16" |
5/32" |
25/64" |
5-1/32" |
3/8" |
|
11/64" |
3-1/8" |
11/64" |
13/32" |
5-3/16" |
3/8" |
|
3/16" |
3-1/2" |
3/16" |
27/64" |
5-11/32" |
3/8" |
|
13/64" |
3-11/16" |
13/64" |
7/16" |
5-1/2" |
3/8" |
|
7/32" |
3-23/32" |
7/32" |
29/64" |
5-5/8" |
3/8" |
|
15/64" |
3-27/32" |
15/64" |
15/32" |
5-3/4" |
3/8" |
|
1/4" |
3-31/32" |
1/4" |
31/64" |
5-3/4" |
3/8" |
|
17/64" |
4-1/8" |
17/64" |
1/2" |
5-3/4" |
3/8" |
|
9/32" |
4-3/16" |
9/32" |
9/16" |
6" |
3/8" |
|
19/64" |
4-11/32" |
19/64" |
5/8" |
7" |
3/8" |
|
5/16" |
4-7/16" |
5/16" |
3/4" |
7-3/4" |
3/8" |
|
21/64" |
4-23/32" |
21/64" |
7/8" |
8-1/4" |
3/8" |
|
11/32" |
4-25/32" |
11/32" |
1" |
8-3/4" |
3/8" |
|
