Bi-metal hole saws (regular size)            Bi-metal M42 hole saw (big cutting depth)

HSS Hole Saws                                           HCS hole saws

Carbide Tipped Hole Saws                      Carbide Gritted Hole Saws

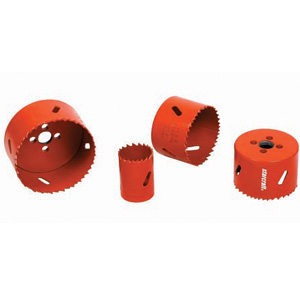

Bi-metal hole saws (regular size)

DESCRIPTION

M3/M42 bi-metal construction for heavy duty cutting:

*Variable pitch teeth for faster, smoother cutting and less vibration

*longer lasting design for more cuts per saw

*Multiple knock-out slots and holes for easy core removal

*Cutting depth to 1-1/2"(38mm), 1-7/8"(47mm)

*Diameters from 14mm to 381mm (9/16" to 15")

*Can be used in portable electric or pneumatic tools, vertical drill machines, lathe, boring/milling machines and other machine tools

*Cuts through stainless steel and other materials pipe, nail-embedded wood, hard wood floors, plywood and plastics

*Extra charge for the pilot and arbor

Diameter Diameter
14mm 9/16" 70mm 2-3/4"
16mm 5/8" 73mm 2-7/8"
17mm 11/16" 76mm 3"
19mm 3/4" 79mm 3-1/8"
20mm 25/32" 83mm 3-1/4"
21mm 13/16" 86mm 3-3/8"
22mm 7/8" 89mm 3-1/2"
24mm 15/16" 92mm 3-5/8"
25mm 1" 95mm 3-3/4"
27mm 1-1/16" 98mm 3-7/8"
29mm 1-1/8" 102mm 4"
30mm 1-3/16" 105mm 4-1/8"
32mm 1-1/4" 108mm 4-1/4"
33mm 1-5/16" 111mm 4-3/8"
35mm 1-3/8" 114mm 4-1/2"
37mm 1-7/16" 121mm 4-3/4"
38mm 1-1/2" 127mm 5"
40mm 1-9/16" 133mm 5-1/4"
41mm 1-5/8" 140mm 5-1/2"
43mm 1-11/16" 146mm 5-3/4"
44mm 1-3/4" 152mm 6"
46mm 1-13/16" 160mm 6-19/64"
48mm 1-7/8" 165mm 6-1/2"
51mm 2" 168mm 6-5/8"
52mm 2-1/16" 177mm 6-31/32"
54mm 2-1/8" 200mm 7-7/8"
57mm 2-1/4" 210mm 8-17/64"
59mm 2-5/16" 222mm 8-3/4"
60mm 2-3/8" 254mm 10"
64mm 2-1/2" 276mm 10-7/8"
65mm 2-9/16" 325mm
67mm 2-5/8" 327mm 12-7/8"
68mm 2-11/16" 381mm 15"



Power Change™ Bi-metal hole saws

DESCRIPTION

One mandrel is all you need with the Power Change™ bi-metal hold saw system.
A heavy-duty hex shank provides easy change-out of any size hole saw & emdash; no pliers needed.
-
Have you in the past used a hole saw and spent far too much time fitting and unscrewing the hole saw and changing the pilot drill bit with an Allen key.
The new Bimetal hole saw offers an innovative and patented Power Change adapter. The quick-change adapter offers rapid change of hole saw and pilot drill bit with a single click so longer will you have trouble with stuck threads.
Only one single adapter is needed for all hole saws ranging from 14mm to 152mm diameter. The hole saw is made from high-quality Progress teeth for superior performance and long service life in cast steel and iron, stainless steel, structural steel, Aluminium, bronze, copper, PVC, acrylic glass and wood.
Diameter Diameter
14mm 9/16" 65mm 2-9/16"
16mm 5/8" 67mm 2-5/8"
17mm 11/16" 68mm 2-11/16"
19mm 3/4" 70mm 2-3/4"
20mm 25/32" 73mm 2-7/8"
21mm 13/16" 76mm 3"
22mm 7/8" 79mm 3-1/8"
24mm 15/16" 83mm 3-1/4"
25mm 1" 86mm 3-3/8"
27mm 1-1/16" 89mm 3-1/2"
29mm 1-1/8" 92mm 3-5/8"
30mm 1-3/16" 95mm 3-3/4"
32mm 1-1/4" 98mm 3-7/8"
33mm 1-5/16" 102mm 4"
35mm 1-3/8" 105mm 4-1/8"
37mm 1-7/16" 108mm 4-1/4"
38mm 1-1/2" 111mm 4-3/8"
40mm 1-9/16" 114mm 4-1/2"
41mm 1-5/8" 121mm 4-3/4"
43mm 1-11/16" 127mm 5"
44mm 1-3/4" 133mm 5-1/4"
46mm 1-13/16" 140mm 5-1/2"
48mm 1-7/8" 146mm 5-3/4"
51mm 2" 152mm 6"
52mm 2-1/16" 160mm 6-19/64"
54mm 2-1/8" 165mm 6-1/2"
57mm 2-1/4" 168mm 6-5/8"
59mm 2-5/16" 177mm 6-31/32"
60mm 2-3/8" 200mm 7-7/8"
64mm 2-1/2" 210mm 8-17/64"

Arbors and accessories for Bi-metal Hole Saws

Item No.
Shank
Thread
Chuck
Fits Saws


T10103001

1/4 Round

1/2-20

1/4 9/16 -- 1-3/16



(14mm-30mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103002

3/8  Hex 1/2-20 3/8

9/16 -- 1-3/16




(14mm-30mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103003

7/16 Hex 1/2-20 1/2 9/16 -- 1-3/16



(14mm-30mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103004

7/16 Hex
1/2-20
1/2
9/16 -- 1-3/16(14mm-30mm)
Item No.
Shank
Thread
Chuck
Fits Saws
T10103005
7/16 Hex
5/8-18
1/2
1-1/4 -- 2-3/8(32mm-60mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103006

7/16Hex 5/8-18 1/2 1-1/4 -- 8-17/64



(32mm-210mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103007

3/8Hex 5/8-18 3/8 1-1/4 -- 8-17/64



(32mm-210mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103008

7/16 Hex 5/8-18 1/2 1-1/4 -- 8-17/64



(32mm-210mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103009

5/8 Hex 5/8-18 3/4 1-1/4 -- 8-17/64



 (32mm-210mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103010

SDS Plus 1/2-20 SDS 9/16 -- 1-3/16




(14mm-30mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103011

SDS Plus 5/8-18 SDS 1-1/4 -- 8-17/64



 (31mm-210mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103012

1/4 Universal 1/2-20 1/4 9/16 -- 1-3/16



 (14mm-30mm)
Item No.
Shank
Thread
Chuck
Fits Saws

T10103013

1/4 Universal 5/8-18 1/4 1-1/4 -- 8-17/64



(31mm-210mm)
tem No.
Description
T10104001
Adapters arbors with 1/2-20 threads to fit 5/8-18
Item No. Description
T10104002
5-1/2" (140mm) Extension for shank of 7/16" arbors
T10104003 10" (250mm) Extension for shank of 7/16" arbors
T10104004 12" (300mm) Extension for shank of 7/16" arbors
T10104005 18" (450mm) Extension for shank of 7/16" arbors
Item No.
Description
T10104006
Ejector Spring, fits all 1/4" pilot drills
Item No.
Description

T10104007
2-7/8" x1/4" (73mm x 6.35mm) Pilot Drills
Item No.
Description
T10104008
4" x1/4" (102mm x 6.35mm) Pilot Drills
Item No.
Description
T10104009
Hex Key Wrench

Bi-metal hole saws Built-in arbor

DESCRIPTION

1. Bi-metal construction with an M3/M42 cutting edge for higher wear resistance

    and longer life.

2. 4/6 variable pitch reduces vibration, creating a smoother cut.

3. 1-1/2" cutting depth with a positive rake for better chip clearance to cut through

    2 x 4's

4. Cuts holes in wood, plastic, or any machinable metal, including nail-embedded

    wood, plywood, pipe, stainless steel, etc.

Diameter Diameter
14mm 9/16" 65mm 2-9/16"
16mm 5/8" 67mm 2-5/8"
17mm 11/16" 68mm 2-11/16"
19mm 3/4" 70mm 2-3/4"
20mm 25/32" 73mm 2-7/8"
21mm 13/16" 76mm 3"
22mm 7/8" 79mm 3-1/8"
24mm 15/16" 83mm 3-1/4"
25mm 1" 86mm 3-3/8"
27mm 1-1/16" 89mm 3-1/2"
29mm 1-1/8" 92mm 3-5/8"
30mm 1-3/16" 95mm 3-3/4"
32mm 1-1/4" 98mm 3-7/8"
33mm 1-5/16" 102mm 4"
35mm 1-3/8" 105mm 4-1/8"
37mm 1-7/16" 108mm 4-1/4"
38mm 1-1/2" 111mm 4-3/8"
40mm 1-9/16" 114mm 4-1/2"
41mm 1-5/8" 121mm 4-3/4"
43mm 1-11/16" 127mm 5"
44mm 1-3/4" 133mm 5-1/4"
46mm 1-13/16" 140mm 5-1/2"
48mm 1-7/8" 146mm 5-3/4"
51mm 2" 152mm 6"
52mm 2-1/16" 160mm 6-19/64"
54mm 2-1/8" 165mm 6-1/2"
57mm 2-1/4" 168mm 6-5/8"
59mm 2-5/16" 177mm 6-31/32"
60mm 2-3/8" 200mm 7-7/8"
64mm 2-1/2" 210mm 8-17/64"

m
