Diamond Core Drill Bits
Concrete Core
Drill Bits
กก
Diamond Core Drill Bits
( concrete hole saw, diamond core drill,
concrete drill core bits)

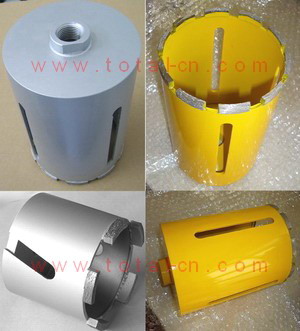

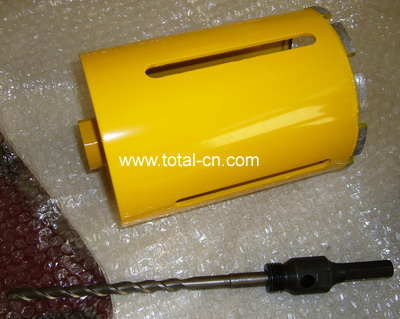

DRY TYPE
Application: For masonry, brick,
concrete with light or medium steel reinforcing. Also effective for
granite, marble and stone. Special vents help keeping the bit cool
and provide fast removal of cutting debris.
กก
กก
|
|
|
item no. |
O.D
(mm)
+/-1mm |
O.D
(inch) |
O.L(mm)
cutting depth |
|
TLT01 |
25 |
1 |
170 |
|
TLT1-1/4 |
32 |
1-1/4" |
170 |
|
TLT1-1/2 |
38 |
1-1/2" |
170 |
|
TLT02 |
50 |
2 |
170 |
|
TLT2-1/2 |
63 |
2-1/2" |
170 |
|
TLT03 |
75 |
3 |
170 |
|
TLT3-1/2 |
82 |
3-1/2" |
170 |
|
TLT04 |
100 |
4 |
170 |
|
TLT4-1/2 |
115 |
4-1/2" |
170 |
|
TLT05 |
125 |
5 |
170 |
|
TLT06 |
150 |
6 |
170 |
|
TLT07 |
180 |
7 |
170 |
|
TLT08 |
200 |
8 |
170 |
|
TLT09 |
230 |
9 |
170 |
|
TLT10 |
250 |
10 |
170 |
|
TLT11 |
114 |
4-1/2" |
6" |
|
TLT12 |
165 |
6-1/2" |
6" |
|
TLT13 |
219 |
8.6"/8.62" |
6" |
|
TLT14 |
225 |
กก |
6" |
Different
connections and segment specifications are
available upon request.
|

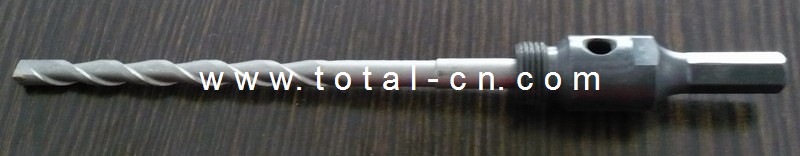

กก Arbors and Pilot Drills
|
HEX
Extension 1/2"BSP*240mm |
HEX Short
1/2"BSP*88mm |
|
 |
 |
|
SDS
Extension 1/2"BSP*240mm |
SDS Short
1/2"BSP*115mm |
|
 |
 |
|
SDS Max
1/2"BSP*130mm or 150mm |
Drift key |
|
 |
 |
|
taper
drill 10*200mm |
กก |
|
 |
กก |
กก

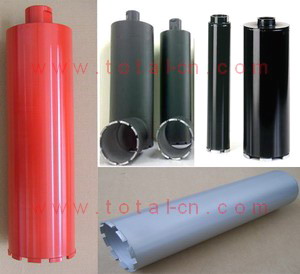

WET TYPE (SINGLE& ASSEMBLY)
Application: For drilling various
ranges of materials including masonry, bricks, concrete blocks,
reinforced concrete, etc. with water. The assembly type is made
up of three parts: Bit, Tube, and Coupling.
กก
Different connections and segment
specifications are available upon request.
กก
|
 |
|
item no. |
O.D
(mm) |
O.D
(inch) |
O.L
(mm) |
|
TSW01 |
25 |
1 |
400 |
|
TSW1-1/4 |
32 |
1-1/4" |
400 |
|
TSW1-1/2 |
38 |
1-1/2" |
400 |
|
TSW02 |
50 |
2 |
400 |
|
TSW2-1/2 |
63 |
2-1/2" |
400 |
|
TSW03 |
75 |
3 |
400 |
|
TSW3-1/2 |
82 |
3-1/2" |
400 |
|
TSW04 |
100 |
4 |
400 |
|
TSW4-1/2 |
115 |
4-1/2" |
400 |
|
TSW05 |
125 |
5 |
400 |
|
TSW06 |
150 |
6 |
400 |
|
TSW07 |
180 |
7 |
400 |
|
TSW08 |
200 |
8 |
400 |
|
TSW09 |
230 |
9 |
400 |
|
TSW10 |
250 |
10 |
400 |
|
TSW12 |
300 |
12 |
400 |
|
TSW14 |
350 |
14 |
400 |
|
กก

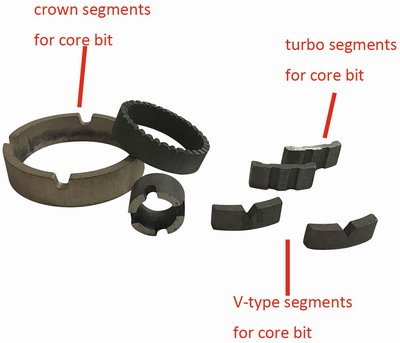

Segments
for Diamond Core Drill Bits
กก
กก
|
FOR CORE BITS (SEGMENTED) |
|
DIAMETER (MM) |
SEGMENT LENGTH (MM) |
SEGMENT THICKNESS (MM) |
SEGMENT HEIGHT (MM) |
SEGMENTS NUMBER |
|
25 |
17 |
3.0 |
8/10 |
3 |
|
32 |
17 |
3.0 |
8/10 |
3 |
|
38 |
17 |
3.0 |
8/10 |
4 |
|
50 |
24 |
3.5 |
8/10 |
5 |
|
63 |
24 |
3.5 |
8/10 |
6 |
|
75 |
24 |
3.5 |
8/10 |
7 |
|
89 |
24 |
3.5 |
8/10 |
8 |
|
100 |
24 |
4.0 |
8/10 |
9 |
|
115 |
24 |
4.0 |
8/10 |
10 |
|
125 |
24 |
4.0 |
8/10 |
10 |
|
150 |
24 |
4.0 |
8/10 |
12 |
|
180 |
24 |
4.0 |
8/10 |
14 |
|
200 |
24 |
4.5 |
8/10 |
16 |
|
230 |
24 |
4.5 |
8/10 |
18 |
|
250 |
24 |
4.5 |
8/10 |
20 |
|
300 |
24 |
5.0 |
8/10 |
22 |
|
350 |
24 |
5.0 |
8/10 |
24 |
กก
|
FOR CORE BITS (CROWN TYPE) |
|
DIAMETER (MM) |
SEGMENT LENGTH (MM) |
SEGMENT THICKNESS (MM) |
SEGMENT HEIGHT (MM) |
SLOTS NUMBER |
|
4 |
/ |
/ |
10 |
/ |
|
6 |
/ |
/ |
10 |
/ |
|
8 |
/ |
/ |
10 |
1 |
|
10 |
/ |
/ |
10 |
1 |
|
12 |
/ |
/ |
10 |
1 |
|
14 |
/ |
/ |
10 |
1 |
|
16 |
/ |
/ |
10 |
2 |
|
18 |
18 |
2.7 |
10 |
2 |
|
20 |
20 |
2.7 |
10 |
2 |
|
22 |
22 |
2.7 |
10 |
2 |
|
25 |
25 |
2.7 |
10 |
2 |
|
28 |
28 |
2.7 |
10 |
2 |
|
30 |
30 |
2.7 |
10 |
4 |
|
32 |
32 |
2.7 |
10 |
4 |
|
33 |
33 |
2.7 |
10 |
4 |
|
35 |
35 |
2.7 |
10 |
4 |
|
38 |
38 |
2.7 |
10 |
4 |
|
40 |
40 |
2.7 |
10 |
4 |
|
42 |
42 |
2.7 |
10 |
4 |
|
45 |
45 |
2.7 |
10 |
4 |
|
48 |
48 |
2.7 |
10 |
4 |
|
50 |
50 |
2.7 |
10 |
4 |
|
60 |
60 |
2.7 |
10 |
4 |
กก
|
 |
|

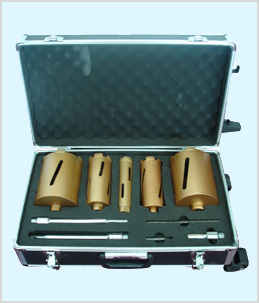

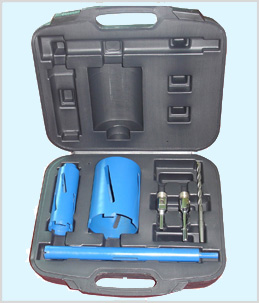

3-PC SET |
|
52mm,65mm,117mm |
|
Hex
Adaptor |
|
SDS
Extension |
|
Drift
Key |
|
Pilot
Drill |
|
With
Aluminum case |
กก |
 |
|

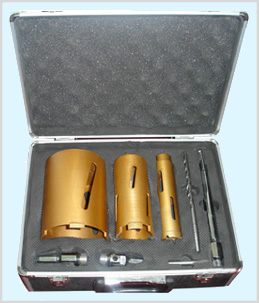

5-PC SET |
|
38mm,52mm,65mm,117mm, |
|
127mm |
|
Hex
Adaptor, Hex Extension |
|
SDS
Adaptor, SDS Extension |
|
Drift
Key |
|
Pilot
Drill |
| กก |
|
กก
|
 |
|
11PC diamond core bits pcs |
|
งถ 127 X 170mm core bits 1PC |
|
งถ 117 X 170mm core bits 1PC |
|
งถ 65 X 170mm core bits 1PC |
|
งถ 52 X 170mm core bits 1PC |
|
งถ 38 X 170mm core bits 1PC |
|
10 X 200MM A Taper pilot drill 1PC |
|
6 X 50MM Drift Key 1PC |
|
10 X 240MM SDS Thread adaptor 1PC |
|
12 X 240MM HEX Thread adaptor 1PC |
|
10 X 115MM SDS Thread adaptor 1PC |
|
12 X 88MM HEX Thread adaptor 1PC |
|
Packing: B.F.C |
|
|
กก
|
กก
|
|
 |
|
9PC diamond core bits pcs |
|
งถ 127 X 170mm core bits 1PC |
|
งถ 65 X 170mm core bits 1PC |
|
งถ 38 X 170mm core bits 1PC |
|
10 X 200MM A Taper pilot drill 1PC |
|
6 X 50MM Drift Key 1PC |
|
10 X 240MM SDS Thread adaptor 1PC |
|
12 X 240MM HEX Thread adaptor 1PC |
|
10 X 115MM SDS Thread adaptor 1PC |
|
12 X 88MM HEX Thread adaptor 1PC |
|
300X 20mm Segmented blade 1PC |
|
Packing: B.F.C |
|
|
กก
|
กก
|
|
|
|
6 pcs diamond core bits pcs |
|
งถ 107 X 150mm core bits 1PC |
|
งถ 52 X 150mm core bits 1PC |
|
งถ 28 X 300mm core bits 1PC |
|
10 X 115mm SDS Thread adaptor 1PC |
|
12 X 88mm HEX Thread adaptor 1PC |
|
10 X 200mm A Taper pilot drill 1PC |
|
Packing : B.F.C |
|
|
กก
|
กก
|
|
|
|
10 pcs diamond core bits pcs |
|
งถ 127 X 170mm core bits 1PC |
|
งถ 117 X 170mm core bits 1PC |
|
งถ 65 X 170mm core bits 1PC |
|
งถ 52 X 170mm core bits 1PC |
|
งถ 38 X 170mm core bits 1PC |
|
10 X 200MM A Taper pilot drill 1PC |
|
6 X 50MM Drift Key 1PC |
|
10 X 240MM SDS Thread adaptor 1PC |
|
12 X 240MM HEX Thread adaptor 1PC |
|
10 X 115MM SDS Thread adaptor 1PC |
|
Packing :Aluminium trade case |
|
|
กก
|
กก
|
|
|
|
8 pcs diamond core bits pcs |
|
งถ 107 X 150mm core bits 1PC |
|
งถ 52 X 150mm core bits 1PC |
|
งถ 28 X 300mm core bits 1PC |
|
10 X 115mm SDS Thread adaptor 1PC |
|
12 X 88mm HEX Thread adaptor 1PC |
|
10X240mm SDS Thread adaptor 1PC |
|
10 X 200mm A Taper pilot drill 1PC |
|
6 X 50mm Drift Key 1PC |
|
Packing: Aluminium trade case |
|
|
