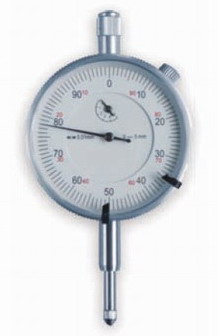

| Can be with
or without back ear. |
| Muilt-Diam
of dial can be choosen. |
| The colors
of dial can be designed by customers. |
|
Item No. |
Specification |
Dial Dia. |
QTY/Carton |
N.W.(kg) |
G.W.(kg) |
Meas(cm) |
|
TB0116-6010 |
0-10mm*0.1 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0116-6015 |
0-15mm*0.1 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0116-6020 |
0-20mm*0.1 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0116-6025 |
0-25mm*0.1 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0116-6030 |
0-30mm*0.1 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-3504 |
0-4mm*0.01 |
35mm |
50 |
5.0 |
6.0 |
34.0*30.0*22.0 |
|
TB0113-4010 |
0-10mm*0.01 |
40mm |
50 |
5.0 |
6.0 |
34.0*30.0*22.0 |
|
TB0113-4003 |
0-3mm*0.01 |
40mm |
50 |
5.0 |
6.0 |
34.0*30.0*22.0 |
|
TB0113-4005 |
0-5mm*0.01 |
40mm |
50 |
5.0 |
6.0 |
34.0*30.0*22.0 |
|
TB0113-4008 |
0-8mm*0.01 |
40mm |
50 |
5.0 |
6.0 |
34.0*30.0*22.0 |
|
TB0113-4010 |
0-10mm*0.01 |
40mm |
50 |
5 |
6.0 |
34.0*30.0*22.0 |
|
TB0113-5503 |
0-3mm*0.01 |
55mm |
50 |
9.0 |
11.0 |
34.0*30.0*22.0 |
|
TB0113-5505 |
0-5mm*0.01 |
55mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-5510 |
0-10mm*0.01 |
55mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-6003 |
0-3mm*0.01 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-6005 |
0-5mm*0.01 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-6010 |
0-10mm*0.01 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-6015 |
0-15mm*0.01 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-6020 |
0-20mm*0.01 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-6025 |
0-25mm*0.01 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-6030 |
0-30mm*0.01 |
60mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0113-7635 |
0-35mm*0.01 |
76mm |
50 |
22.0 |
24.0 |
50.0*46.0*33.0 |
|
TB0113-7640 |
0-40mm*0.01 |
76mm |
50 |
22.0 |
24.0 |
50.0*46.0*33.0 |
|
TB0113-7645 |
0-45mm*0.01 |
76mm |
50 |
22.0 |
24.0 |
50.0*46.0*33.0 |
|
TB0113-7650 |
0-50mm*0.01 |
76mm |
50 |
22.0 |
24.0 |
50.0*46.0*33.0 |
|
TB0124-4001 |
0-0.1in*0.001 |
1.6in |
50 |
5.0 |
6.0 |
34.0*22.0*20.0 |
|
TB0124-4002 |
0-0.2in*0.001 |
1.6in |
50 |
5.0 |
6.0 |
34.0*22.0*20.0 |
|
TB0124-40025 |
0-0.25in*0.001 |
1.6in |
50 |
5.0 |
6.0 |
34.0*22.0*20.0 |
|
TB0124-55025 |
0-0.25in*0.001 |
2.17in |
50 |
7.0 |
9.0 |
42.0*34.0*32.0 |
|
TB0124-5505 |
0-0.5in*0.001 |
2.17in |
50 |
7.0 |
9.0 |
42.0*34.0*32.0 |
|
TB0124-5510 |
0-1in*0.001 |
2.17in |
50 |
7.0 |
9.0 |
42.0*34.0*32.0 |
|
TB0124-60025 |
0-0.25in*0.001 |
2.375in |
50 |
7.0 |
9.0 |
42.0*34.0*32.0 |
|
TB0124-6005 |
0-0.5in*0.001 |
2.375in |
50 |
7.0 |
9.0 |
42.0*34.0*32.0 |
|
TB0124-6010 |
0-1in*0.001 |
2.375in |
50 |
7.0 |
9.0 |
42.0*34.0*32.0 |
|
TB0124-7615 |
0-0.15in*0.001 |
3in |
50 |
18.0 |
20.0 |
58.0*51.0*31.0 |
|
TB0124-7620 |
0-2in*0.001 |
3in |
50 |
18.0 |
20.0 |
58.0*51.0*31.0 |

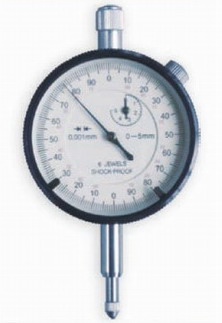

MICRON INDICATORS
|
Item No. |
Specification |
Dial Dia. |
QTY/Carton |
N.W.(kg) |
G.W.(kg) |
Meas(cm) |
|
TB0511-4001 |
0-1mm*0.001 |
40mm |
50 |
7 |
8.0 |
34.0*22.0*20.0 |
|
TB0511-6001 |
0-1mm*0.001 |
60mm |
50 |
9.0 |
11.0 |
42.0*34.0*32.0 |
|
TB0511-6002 |
0-2mm*0.001 |
60mm |
50 |
9.0 |
11.0 |
42.0*34.0*32.0 |
|
TB0511-6003 |
0-3mm*0.001 |
60mm |
50 |
9.0 |
11.0 |
42.0*34.0*32.0 |
|
TB0511-6005 |
0-5mm*0.001 |
60mm |
50 |
9.0 |
11.0 |
42.0*34.0*32.0 |
|
TB0511-7601 |
0-1mm*0.001 |
76mm |
50 |
11.0 |
13.0 |
58.0*34.0*32.0 |
|
TB0511-7602 |
0-2mm*0.001 |
76mm |
50 |
11.0 |
13.0 |
58.0*34.0*32.0 |
|
TB0511-7603 |
0-3mm*0.001 |
76mm |
50 |
11.0 |
13.0 |
58.0*34.0*32.0 |
|
TB0511-7605 |
0-5mm*0.001 |
76mm |
50 |
11.0 |
13.0 |
58.0*34.0*32.0 |

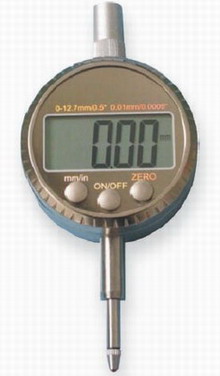

ELECTRONIC DIGITAL
DIAL INDICATORS
| LCD Display. |
| Zero setting
at any position. |
| Metric/Inch
system interchange. |
|
Item No. |
Specification |
Dial Dia. |
QTY/Carton |
N.W.(kg) |
G.W.(kg) |
Meas(cm) |
|
TB0233-5610 |
0-10mm*0.01/0-0.5in*0.0005 |
＼0.02mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |
|
TB0233-5625 |
0-25mm*0.01/1in*0.0005 |
＼0.03mm |
50 |
9.0 |
11.0 |
47.0*30.0*22.0 |

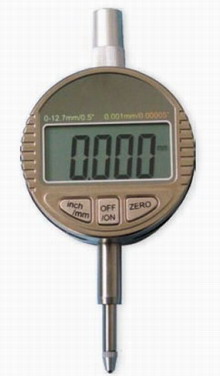

ELECTRONIC MICRON
DIAL INDICATORS
|
Item No. |
Specification |
QTY/Carton |
N.W. (kg) |
G.W. (kg) |
Meas (cm) |
|
TB0231-6406 |
0-12mm*0.001/0.2in*0.00005 |
＼0.006mm |
|
|
|

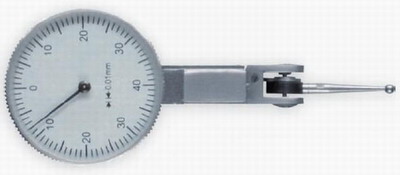

TEST INDICATING
DIALS
| Positive and
relative measurement. |
| 0-180 degree
adjustable measuring head. |
| Ruby ball
head can be chosen. |
| Forward and
opposite measurement. |
|
Item No. |
Specification |
Dial Dia. |
QTY/Carton |
N.W. (kg) |
G.W. (kg) |
Meas (cm) |
|
TB0413-3280 |
0-0.8mm*0.01 |
32mm |
50 |
6.0 |
8.0 |
34.0*22.0*20.0 |
|
TB0413-3880 |
0-0.8mm*0.01 |
38mm |
50 |
6.0 |
8.0 |
34.0*22.0*20.0 |
|
TB0423-3203 |
0-0.03in*0.0005 |
1.26in |
50 |
6.0 |
8.0 |
34.0*22.0*20.0 |
|
TB0423-3803 |
0-0.03IN*0.0005 |
1.5in |
50 |
6.0 |
8.0 |
34.0*22.0*20.0 |
|
TB0412-3220 |
0-0.2mm*0.002 |
32mm |
50 |
6.0 |
8.0 |
34.0*22.0*20.0 |
|
TB0412-4020 |
0-0.2mm*0.002 |
40mm |
50 |
6.0 |
8.0 |
34.0*22.0*20.0 |
|
TB0422-32008 |
0-0.008in*0.0001 |
1.26in |
50 |
6.0 |
8.0 |
34.0*22.0*20.0 |
|
TB0422-40008 |
0-0.008in*0.0001 |
1.57in |
50 |
6.0 |
8.0 |
34.0*22.0*20.0 |

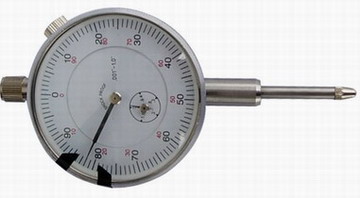

BRITISH STANDARD
DIAL INDICATORS
|
Item No. |
Specification |
QTY/Carton |
N.W. (kg) |
G.W. (kg) |
Meas (cm) |
|
TL06-1 |
0-0.5mm*0.0001 |
|
|
|
|
|
TL07-1 |
0-1.0mm*0.0001 |
|
|
|
|
|
TL08-1 |
0-2.0mm*0.0001 |
|
|
|
|
