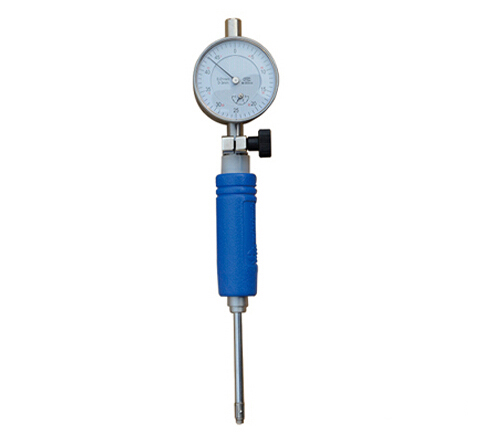

Inner diameter dial indicators/Dial bore Gauge

Features:

Dial bore gauge for small dimensions

Equipped with 0-3mm miniature dial indicator

Model NO. above T335-50 (included): wheel guide, With screw anvils, convenience to set the dimension

NO. T319 is with board guide

NO.T333-35 is with canister guide and fixed anvils

NO. T334-35 is with plate guide and screw anvils

Packing: plastic case

　

ItemNo

Range(mm)

Grad.(mm)

Depth(mm)

Accessories

Anvils

Washers

T331-10

6-10

0.01

40

9

1

T332-18

10-18

0.01

 100

9



T333-35

18-35

0.01

150

9

2

T334-35

18-35

0.01

 125

7



T335-50

35-50

0.01

150

3



T335-100

50-100

0.01

 150

5



T335-160

50-160

0.01

150

5

1

T335-250

160-250

0.01

250

5



T335-450

250-450

0.01

250

5

1

T336-250

100-250

0.01

200

4

1

T335-750

450-750

0.01

250

5

1

　

　

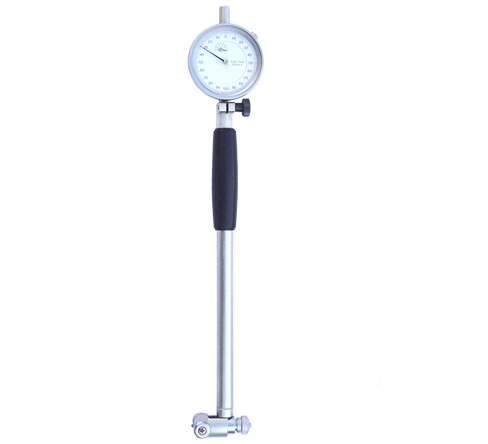

MICRO DIAL BORE GAUGES

　

FEATURES:

　

Wheel guide


T311-18 is with plate guide


T311-35 is with canister


Fixed or inserting anvils


Equipped with 0-1mm indicator

　

Packing: plastic case

　

Item No

 Range (mm) Grad. (mm) Depth (mm)

Accessories (PCS)
Anvils Washers Sub-anvils

T311-10

6-10

0.001

40

9





T311-18

10-18

0.001

100

9

1



T311-35

18-35

0.001

150

9

2



T311-50

35-50

0.001

150

4

4



T311-160

50-160

0.001

150

12

4

1

T311-250

160-250

0.001

250

5

5

1

T311-450

250-450

0.001

250

5

5

2

　

　
