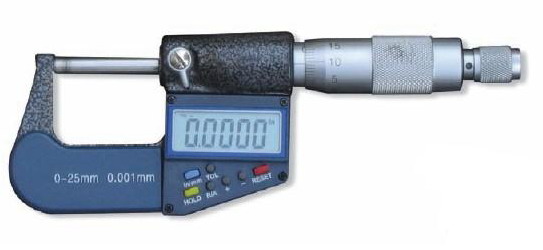

MICROMETER
ELECTRONIC DIGITAL
MICROMETER
|
Metric/Inch conversion. |
Date output. |
|
Date hold. |
Relative/Absolute Measuring. |
|
Tolerance Setting. |
Positive Setting. |
|
Negative Setting. |
Origin resetting. |
|
Item No. |
Specification |
QTY/Carton |
N.W. (kg) |
G.W. (kg) |
Meas (cm) |
|
TQ21025 |
0-25mm*0.001/0-1in*0.00005 |
20 |
9.5 |
10.5 |
42.0*22.0*20.0 |
|
TQ21050 |
25-50mm*0.001/0-2in*0.00005 |
20 |
11.5 |
12.5 |
47.0*24.0*19.0 |
|
TQ21075 |
50-75mm*0.001/0-3in*0.0005 |
20 |
15.0 |
16.0 |
52.0*28.0*21.0 |
|
TQ21100 |
75-100mm*0.001/3-4in*0.00005 |
20 |
18.0 |
19.0 |
59.0*32.0*20.0 |
ELECTRONIC
DIGITAL MICROMETER (SINGLE FUNCTION KEY)
|
Easy operation |
|
Display date is origin date of
absolute measurement after changing
battery. |
|
Painted
frame. |
|
Carbide measuring faces. |
|
Ratchet friction thimble.
|
|
Item No. |
Specification |
QTY/Carton |
N.W. (kg) |
G.W. (kg) |
Meas (cm) |
|
TQ22025 |
0-25mm*0.001/0-1in*0.00005 |
20 |
10 |
12 |
40.0*30.0*45.0 |
|
TQ22050 |
25-50mm*0.001/0-2in*0.00005 |
20 |
12.0 |
14.0 |
40.0*30.0*45.0 |
|
TQ22075 |
50-75mm*0.001/0-3in*0.00005 |
20 |
20.0 |
22.0 |
41.0*30.0*31.0 |
| TQ22100 |
75-100mm*0.001/3-4in*0.00005 |
20 |
23.0 |
25.0 |
54.0*44.5*32.5 |

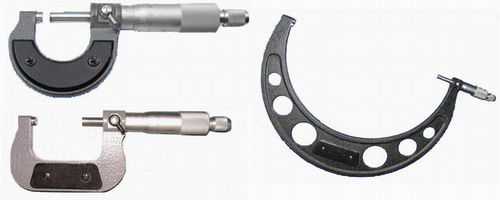

MICROMETER
|
Carbide measuring faces. |
|
Painted
or chrome-plated frame. |
|
Ratchet stop. |
|
Item No. |
Specification |
QTY/Carton |
N.W. (kg) |
G.W. (kg) |
Meas (cm) |
|
TQ11025 |
0-25mm*0.01 |
20 |
9.5 |
10.5 |
42.0*22.0*20.0 |
|
TQ11050 |
25-50mm*0.01 |
20 |
11.5 |
12.5 |
47.0*24.0*19.0 |
|
TQ11075 |
50-75mm*0.01 |
20 |
15.0 |
16.0 |
52.0*28.0*21.0 |
|
TQ11100 |
75-100mm*0.01 |
20 |
18.0 |
19.0 |
59.0*32.0*20.0 |
|
TQ11125 |
100-125mm*0.01 |
|
|
|
|
|
TQ11150 |
125-150mm*0.01 |
|
|
|
|
|
TQ11175 |
150-175mm*0.01 |
|
|
|
|
|
TQ11200 |
175-200mm*0.01 |
|
|
|
|
|
TQ11225 |
200-225mm*0.01 |
|
|
|
|
|
TQ11250 |
225-250mm*0.01 |
|
|
|
|
|
TQ11275 |
250-275mm*0.01 |
|
|
|
|

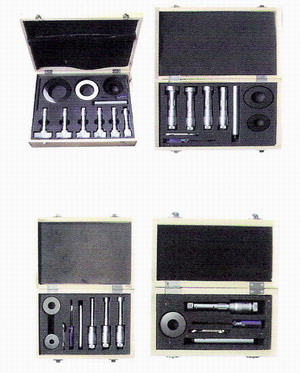

THREE POINTS
INTERNAL MICROMETER
|
Features: |
|
Can automatically center and measure
internal bores. |
|
Designed with high precision measurement
and stable reading. |
|
It could be
used in both through hole and blind
bores. |
|
The
micrometer could be connected with
extension rods to measure deep bore. |
|
Item No. |
Specification |
Description |
|
TT126-6-12 |
6-8mm,8-10mm,10-12mm |
3pcs and accessories (Ring gage +
extension rods) |
|
TT126-11-20 |
11-14mm,14-17mm,17-20mm |
3pcs and accessories (Ring gage +
extension rods) |
|
TT126-20-40 |
20-25mm,25-30mm,30-35mm,35-40mm |
4pcs and accessories (Ring gage +
extension rods) |
|
TT126-40-100 |
40-50mm,50-60mm,.60-70mm,70-80mm,80-90mm,90-100mm |
6pcs and accessories (Ring gage +
extension rods) |
|
