FLAT-HEAD EXTERNAL GROOVE DIGITAL CALIPER

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
T304B.W-6Y210	0-100mm*0.01/0-4in*0.0005	50
T304B.W-6Y215	0-150mm*0.01/0-6in*0.0005	50
T304B.W-6Y220	0-200mm*0.01/0-8in*0.0005	50
T304B.W-6Y230	0-300mm*0.01/0-12in*0.0005	50

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
T304B.W-7Y210	0-100mm*0.01/0-4in*0.0005	50
T304B.W-7Y215	0-150mm*0.01/0-6in*0.0005	50
T304B.W-7Y220	0-200mm*0.01/0-8in*0.0005	50
T304B.W-7Y230	0-300mm*0.01/0-12in*0.0005	50

SHARP-TIPS EXTERNAL DIGITAL CALIPER

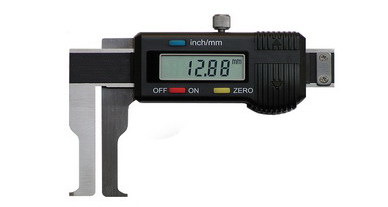

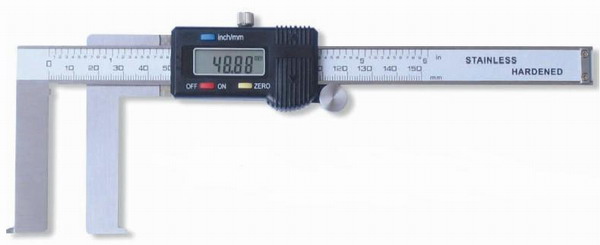

EDGE INNER GROOVE DIGITAL CALIPER

This calipers are equipped with inside angled V-shaped measuring jaws.

Effectively prevent dampness, suitable for application under damp circumstance (IP54).

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
T304K-5Y202	11-15mm*0.01/0.43-2.8in*0.0005	100

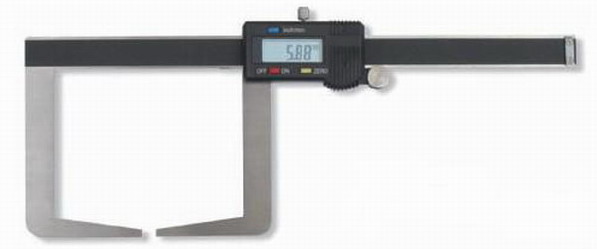

EDGE INNER GROOVE DIGITAL CALIPE

This calipers are equipped with outside angled V-shaped measuring jaws.

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
T304B.W-6Y110	18-100mm*0.01/0.7-4in*0.0005	50
T304B.W-6Y115	18-150mm*0.01/0.7-6in*0.0005	50
T304B.W-6Y120	18-200mm*0.01/0.7-8in*0.0005	20

MINI-TYPE THREE-PURPOSE DIGITAL CALIPER

Three measuring modes, can measure inner dimensions , outer dimensions and thinkness

Zero setting at any position.

Manual power on/off.

Metric/Inch system interchange.

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
T304B-1Y202	0-25mm*0.01/0-1in*0.0005	100

SUPER JAWS INSIDE CALIPERS

This calipers for depth hole diameter measurements

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
T304B-7Y110	10-100mm*0.01/0.4-4in*0.0005	40

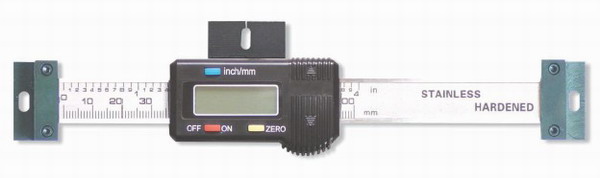

HORIZONTAL SCALE UNIT

Max.range:800mm(32inch).

Metric/inch interchangeable system.

Zero setting at any position.

Manual power on/off.

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
TT304B-1210	0-100mm*0.01/0-4in*0.0005
TT304B-1215	0-150mm*0.01/0-6in*0.0005
TT304B-1220	0-200mm*0.01/0-8in*0.0005
TT304B-1230	0-300mm*0.01/0-12in*0.0005
TT304B-1245	0-450mm*0.01/0-18in*0.0005
TT304B-1250	0-500mm*0.01/0-20in*0.0005
TT304B-1260	0-600mm*0.01/0-24in*0.0005
TT304B-1280	0-800mm*0.01/0-32in*0.0005

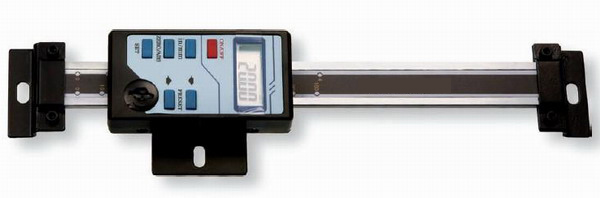

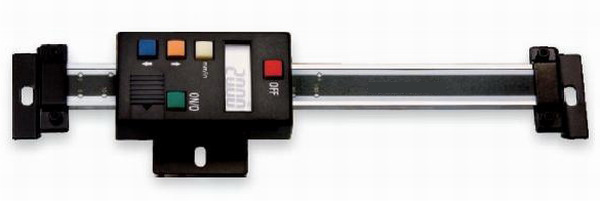

VERTICA SCALE UNIT

Max.range:800mm(32inch).

Metric/inch interchangeable system.

Zero setting at any position.

Manual power on/off.

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
TT3106-1210	0-100mm*0.01/0-4in*0.0005
TT3106-1215	0-150mm*0.01/0-6in*0.0005
TT3106-1220	0-200mm*0.01/0-8in*0.0005
TT3106-1230	0-300mm*0.01/0-12in*0.0005
TT3106-1245	0-450mm*0.01/0-18in*0.0005
TT3106-1250	0-500mm*0.01/0-20in*0.0005
TT3106-1260	0-600mm*0.01/0-24in*0.0005
TT3106-1280	0-800mm*0.01/0-32in*0.0005

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
TT314-1210	0-100mm*0.01/0-4in*0.0005
TT314-1215	0-150mm*0.01/0-6in*0.0005
TT314-1220	0-200mm*0.01/0-8in*0.0005
TT314-1230	0-300mm*0.01/0-12in*0.0005
TT314-1245	0-450mm*0.01/0-18in*0.0005
TT314-1250	0-500mm*0.01/0-20in*0.0005
TT314-1260	0-600mm*0.01/0-24in*0.0005
TT314-1280	0-800mm*0.01/0-32in*0.0005

Item No.	Specification	QTY/Carton	N.W. (kg)	G.W. (kg)	Meas (cm)
TT315-2210	0-100mm*0.01/0-4in*0.0005
TT315-2215	0-150mm*0.01/0-6in*0.0005
TT315-2220	0-200mm*0.01/0-8in*0.0005
TT315-2230	0-300mm*0.01/0-12in*0.0005
TT315-2245	0-450mm*0.01/0-18in*0.0005
TT315-2250	0-500mm*0.01/0-20in*0.0005
TT315-2260	0-600mm*0.01/0-24in*0.0005
TT315-2280	0-800mm*0.01/0-32in*0.0005
