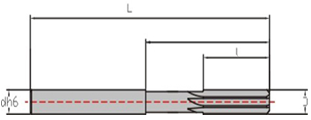

Straight Solid Carbide Reamer

Tolerance:
cutting edge -- H7
shank -- h7

Material parameter:
1. Cobalt: 12% ---> Carbide ( Particle 0.4-0.6um )
2. With TiALN Coating or Non-Coating;
3. Tendency: 14.05*1000KG/M3
4. Tendency: 14.05*1000KG/M3

Common length carbide reamer

　

		#	cutting edge Dia.	Total length	Flute length	Available Flute length	Flute No.
		1	2	49	12	24	3
		2	2	49	12	24	3
		3	2.5	57	12	32	3
		4	3	61	12	36	4
		5	3.5	70	12	40	4
		6	4	75	12	45	4
		7	4.5	80	12	52	4
		8	5	86	16	56	4
		9	5	86	16	56	4
		10	6	86	16	56	4
		11	6	86	16	56	6
		12	7	86	16	56	6
		13	7	86	16	56	6
		14	8	86	16	56	6
		15	8	90	20	60	6
		16	9	90	20	60	6
		17	9	90	20	60	6
		18	10	90	20	60	6
		19	10	90	20	60	6
		20	11	90	20	60	6
		21	11	90	20	60	6
		22	11	90	20	60	6

Extended length carbide reamer

　

		#	cutting edge Dia.	Total length	Flute length	Available Flute length	Flute No.
		1	4	105	16	80	4
		2	5	115	30	90	4
		3	6	130	30	100	4
		4	7	140	30	110	6
		5	8	160	30	130	6
		6	9	160	30	130	6
		7	10	190	30	150	6
		8	11	190	30	150	6
		9	12	220	35	170	6
		10	13	220	35	170	6
		11	14	220	35	170	6
		12	15	220	35	170	6
		13	16	230	40	180	6
		14	18	230	40	180	6
		15	20	230	40	180	6
