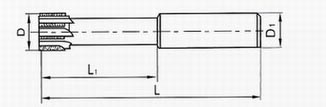

Machine Reamers with Straight Shank and Carbide Tips

　

　

Material: HSS( HSS-E are available)

Finish: black oxide, bright, or Tin-plated
Accuracy：H7 H8 H9
Diameter: 6-20mm

　

Z D D1 L L1
4 6 5.6 93 57
4 7 7.1 109 69
4 8 8 117 75
4 10 10 133 87
4 12 10 151 105
4 14 12.5 160 110
4 15 12.5 162 112
4 16 12.5 170 120
6 17 14 175 125
6 18 14 182 130
6 20 16 195 137

　

　

　

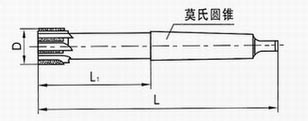

Machine Reamers with Morse Taper Shank and Carbide Tips

　

Material: HSS( HSS-E are available)

Finish: black oxide, bright, or Tin-plated
Accuracy：H7 H8 H9
Diameter: 12-50mm

　

Morse No. Z D L L1
MW1 4 12-15 182 116
MW2 6 16-22 210 131
MW3 6 23-31 268 170
MW4 8 32-44 317 194
MW4 8 45-50 330 210
