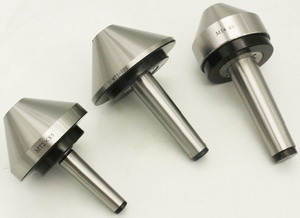

Bumbershoot rotary center

　

　

Model

D

D1

L

d

α

MT2 × 60

60

17.78

137

20

60°

MT3 × 90

90

23.825

169

32

60°

MT4 × 110

110

31.267

184

35

75°

MT5 × 120

120

44.399

251

40

60°

MT5 × 200

200

44.399

252

40

75°

MT5 × 250

250

44.399

281

56

75°

MT6 × 250

250

63.348

335

56

75°

　

Carbide Tipped Live Centers

　

　

Model

L(mm)

L1(mm)

D(mm)

d(mm)

D1(mm)

d1(mm)

Max Speed(rpm)

MT3

170

30

52

28

23.825

15

4200

MT4

205.7

34.7

60

32

31.267

18

3200

MT5

254

45

77

45

44.399

24

2000

MT6

362

68.5

125

75

63.348

40

1600

　

Medium-duty live center

　

　

MS.No.

L(mm)

L1(mm)

d(mm)

D(mm)

D1(mm)

d1(mm)

Max Load(N)

Max Speed(rpm)

Accuracy(mm)

MS2

145

26

25

45

17.78

12

1500

5000

0.01

MS3

170

30

28

52

23.825

15

2000

4200

0.01

MS4

205.7

34.7

32

60

31.267

18

3200

3200

0.01

MS5

254

45

45

77

44.399

24

6300

2000

0.015

MS6

362

68.5

75

125

63.348

40

10000

1600

0.015

　

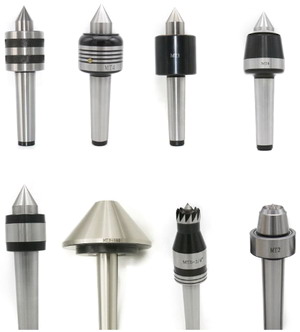

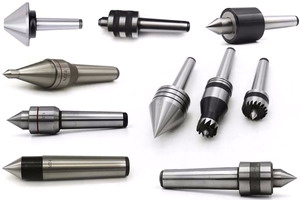

We have many kind of live centers, rotatry centers and high speed live centers as below.

　

Material: Live centers body is C45, centers is 20CrMnTi.
Usage: Matched with lathe chuck for milling machine.
Size: Full sizes.
Remark: We also can provide other types as the sample you offer us.
