SM series-
T.C.T. circular saw
blade for cutting
solid wood
|
¡¡
|
|
|
|
Tooth Model:
alternate top
bevel teeth
|
Application:It's
designed for
cutting both dry
hard and soft
wood, and also
can be used to
cut shaving
board¡¢wood fiber
board¡¢and
joinery panel. |
|
|
¡¡
|
ITEM NO.
|
PLATE DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
SM4-20 |
4"
|
110
|
20
|
>2.2/1.2
|
20
|
SM4-30 |
4"
|
110
|
20
|
2.2/1.2
|
30
|
SM6-24 |
6"
|
150
|
16/25.4
|
2.6/1.6
|
24
|
SM6-40 |
6"
|
150
|
16/25.4
|
2.6/1.6
|
40
|
SM6-60 |
6"
|
150
|
16/25.4
|
2.6/1.6
|
60
|
SM7-24 |
7"
|
180
|
16/25.4
|
2.6/1.6
|
24
|
SM7-40 |
7"
|
180
|
16/25.4
|
2.6/1.6
|
40
|
SM7-60 |
7"
|
180
|
25.4
|
2.6/1.6
|
60
|
SM8-24 |
8"
|
200
|
25.4
|
2.6/1.6
|
24
|
SM8-40 |
8"
|
200
|
25.4
|
2.6/1.6
|
40
|
SM8-60 |
8"
|
200
|
25.4
|
2.6/1.6
|
60
|
SM9-24 |
9"
|
230
|
25.4
|
3.0/2.0
|
24
|
SM9-36 |
9"
|
230
|
25.4
|
3.0/2.0
|
36
|
SM9-40 |
9"
|
230
|
25.4
|
3.0/2.0
|
40
|
SM9-48 |
9"
|
230
|
25.4
|
3.0/2.0
|
48
|
SM9-60 |
9"
|
230
|
25.4
|
3.0/2.0
|
60
|
SM9-80 |
9"
|
230
|
25.4
|
3.0/2.0
|
80
|
SM10-24 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
24
|
SM10-40 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
40
|
SM10-60 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
60
|
SM10-80 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
80
|
SM10-100 |
>10"
|
255
|
25.4/30
|
3.0/2.0
|
100
|
SM10-120 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
120
|
SM12-40 |
12"
|
305
|
25.4/30
|
3.4/2.4
|
40
|
SM12-48 |
12"
|
305
|
25.4/30
|
3.4/2.4
|
48
|
SM12-60 |
12"
|
305
|
25.4/30
|
3.4/2.4
|
60
|
SM12-72 |
12"
|
305
|
25.4/30
|
3.4/2.4
|
72
|
>SM12-80 |
12"
|
305
|
25.4/30
|
3.4/2.4
|
80
|
SM12-100 |
12"
|
305
|
25.4/30
|
3.4/2.4
|
100
|
SM12-120 |
12"
|
305
|
25.4/30
|
3.4/2.4
|
120
|
SM14-48 |
14"
|
350
|
30
|
3.4/2.4
|
48
|
SM14-60 |
14"
|
350
|
30
|
3.4/2.4
|
60
|
SM14-72 |
14"
|
350
|
30
|
3.4/2.4
|
72
|
SM14-80 |
14"
|
350
|
30
|
3.4/2.4
|
80
|
SM14-100 |
14"
|
350
|
30
|
3.4/2.4
|
100
|
SM14-120 |
14"
|
350
|
30
|
3.4/2.4
|
120
|
SM16-60 |
16"
|
400
|
30
|
3.8/2.8
|
60
|
SM16-80 |
16"
|
400
|
30
|
3.8/2.8
|
80
|
SM16-100 |
16"
|
400
|
30
|
3.8/2.8
|
100
|
SM16-120 |
16"
|
400
|
30
|
3.8/2.8
|
120
|
SM18-60 |
18"
|
450
|
30
|
3.8/2.8
|
60
|
SM18-80 |
18"
|
450
|
30
|
3.8/2.8
|
80
|
SM18-100 |
18"
|
450
|
30
|
3.8/2.8
|
100
|
SM18-120 |
18"
|
450
|
30
|
3.8/2.8
|
120
|
Other
Specifications and sizes
are available upon
customer's requests.
|
|
¡¡ |
DM series ¨CT.C.T.
circular saw blade
for parallel cut
|
¡¡
|
|
¡¡
|
|
Tooth Model:
flat teeth
|
Application:
This type of
blade is
designed for
mounting on
multi-blades saw
to parallel
cutting veneer;
plank; joinery
board;
composition
board etc. |
|
¡¡
|
¡¡
|
ITEM NO.
|
PLATE DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
DM7-24 |
7"
|
180
|
25.4
|
1.7/1.2
|
24
|
DM7-36 |
7"
|
180
|
25.4
|
1.7/1.2
|
36
|
DM7-40 |
7"
|
180
|
25.4
|
1.7/1.2
|
40
|
DM9-36 |
9"
|
230
|
25.4
|
2.0/1.5
|
24
|
DM9-48 |
9"
|
230
|
25.4
|
2.0/1.5
|
36
|
DM10-24a |
10"
|
255
|
25.4/30
|
2.0/1.5
|
24
|
DM10-36a |
10"
|
255
|
25.4/30
|
2.0/1.5
|
36
|
DM10-48a |
10"
|
255
|
25.4/30
|
2.0/1.5
|
48
|
DM10-24b |
10"
|
255
|
25.4/30
|
3.0/2.0
|
24
|
DM10-36b |
10"
|
255
|
25.4/30
|
3.0/2.0
|
36
|
DM10-48b |
10"
|
255
|
25.4/30
|
3.0/2.0
|
48
|
DM12-36a |
12"
|
305
|
30
|
2.5/1.7
|
36
|
DM12-48a |
12"
|
305
|
30
|
2.5/1.7
|
48
|
DM12-60a |
12"
|
305
|
30
|
2.5/1.7
|
60
|
DM12-36b |
12"
|
305
|
30
|
3.4/2.4
|
36
|
DM12-48b |
12"
|
305
|
30
|
3.4/2.4
|
48
|
DM12-60b |
12"
|
305
|
30
|
3.4/2.4
|
60
|
DM14-36 |
14"
|
350
|
30
|
3.4/2.4
|
36
|
DM14-48 |
14"
|
350
|
>30
|
3.4/2.4
|
48
|
DM14-60 |
14"
|
350
|
30
|
3.4/2.4
|
60
|
Other
Specifications and sizes
are available upon
customer's requests.
|
|
RX
series-
T.C.T.
circular saw
blade for
cutting
artificial
board
|
¡¡
|
|
¡¡ |
|
|
Tooth
model:
alternate
top
bevel
teeth
¡¡ |
Application:
For
cutting
shaving
board;
wood
fiber
board;
laminates;
plywood
etc. |
|
|
|
¡¡
|
ITEM NO.
|
PLATE DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
RX7-60 |
7"
|
180
|
25.4
|
2.6/1.6
|
60
|
RX8-60 |
8"
|
200
|
25.4
|
2.6/1.6
|
60
|
RX10-60 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
60
|
RX10-80 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
80
|
RX10-100 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
100
|
RX10-120 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
120
|
RX12-60 |
12"
|
305
|
30
|
3.4/2.4
|
60
|
RX12-72 |
12"
|
305
|
30
|
3.4/2.4
|
72
|
RX12-100 |
12"
|
305
|
30
|
3.4/2.4
|
100
|
RX12-120 |
12"
|
305
|
30
|
3.4/2.4
|
120
|
RX14-60 |
14"
|
350
|
30
|
3.4/2.4
|
60
|
RX14-72 |
14"
|
350
|
30
|
3.4/2.4
|
72
|
RX14-100 |
14"
|
350
|
30
|
3.4/2.4
|
100
|
Other
Specifications and sizes
are available upon
customer's requests.
|
|
¡¡
RT
series-
T.C.T.
circular saw
blade for
cutting
artificial
board
|
¡¡
|
|
¡¡ |
|
|
Tooth Model:
trapeziform-flat
teeth
¡¡ |
Application:
For cutting
shaving
board; wood
fiber board;
laminates¡£ |
|
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
RT10-60 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
60
|
RT10-80 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
80
|
RT10-100 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
100
|
RT10-120 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
120
|
RT12-60 |
12"
|
305
|
30
|
3.4/2.4
|
60
|
RT12-72 |
12"
|
305
|
30
|
3.4/2.4
|
72
|
RT12-100 |
12"
|
305
|
30
|
3.4/2.4
|
100
|
RT12-120 |
12"
|
305
|
30
|
3.4/2.4
|
120
|
RT14-60 |
14"
|
350
|
30
|
3.4/2.4
|
60
|
RT14-72 |
14"
|
350
|
30
|
3.4/2.4
|
72
|
RT14-100 |
14"
|
350
|
30
|
3.4/2.4
|
100
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
RP
series-T.C.T
circular saw
blade for
cutting
artificial
board
|
¡¡
|
|
¡¡
|
¡¡
|
Tooth Model:
combined
teeth
¡¡ |
Application:
For cutting
veneer¡¢joinery
panel.
¡¡ |
|
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
RP10-60 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
60
|
RP10-80 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
80
|
RP10-100 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
100
|
RP10-120 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
120
|
RP12-60 |
12"
|
305
|
30
|
3.4/2.4
|
60
|
RP12-72 |
12"
|
305
|
30
|
3.4/2.4
|
72
|
RP12-100 |
12"
|
305
|
30
|
3.4/2.4
|
100
|
RP12-120 |
12"
|
305
|
30
|
3.4/2.4
|
120
|
RP14-60 |
14"
|
350
|
30
|
3.4/2.4
|
60
|
RP14-72 |
14"
|
350
|
30
|
3.4/2.4
|
72
|
RP14-100 |
14"
|
350
|
30
|
3.4/2.4
|
100
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
LX
series- Low
noise T.C.T.
circular saw
blade for
cutting dry
soft/hard
wood
¡¡
|
|
¡¡
|
¡¡
|
Tooth Model:
alternate
top bevel
teeth
¡¡ |
Application:
It's used
for cutting
both dry
soft & hard
wood, and
also can be
used to cut
shaving
board¡¢wood
fiber
board¡¢and
joinery
board. |
|
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
LX10-60 |
10"
|
255
|
25.4
|
25.4/30
|
60
|
LX10-100 |
10"
|
255
|
25.4
|
25.4/30
|
100
|
LX10-120 |
10"
|
255
|
25.4
|
25.4/30
|
100
|
LX12-60 |
12"
|
305
|
30
|
3.4/2.4
|
60
|
LX12-72 |
12"
|
305
|
30
|
3.4/2.4
|
72
|
LX12-80 |
12"
|
305
|
30
|
3.4/2.4
|
80
|
LX12-100 |
12"
|
305
|
30
|
3.4/2.4
|
100
|
LX12-120 |
12"
|
305
|
30
|
3.4/2.4
|
120
|
LX14-60 |
14"
|
350
|
30
|
3.4/2.4
|
60
|
LX14-72 |
14"
|
350
|
30
|
3.4/2.4
|
72
|
LX14-80 |
14"
|
350
|
30
|
3.4/2.4
|
100
|
LX14-100 |
14"
|
350
|
30
|
3.4/2.4
|
100
|
LX14-120 |
14"
|
350
|
30
|
3.4/2.4
|
120
|
LX16-60 |
16"
|
400
|
30
|
3.8/2.8
|
60
|
LX16-100 |
16"
|
400
|
30
|
3.8/2.8
|
100
|
LX16-120 |
16"
|
400
|
30
|
3.8/2.8
|
120
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
LT
series-Low
noise T.C.T.
circular saw
blade for
cutting
non-ferrous
metal
|
¡¡
|
|
¡¡
|
¡¡
|
Tooth Model:
trapeziform-flat
teeth
¡¡ |
Application:
It is
designed for
cutting
aluminum and
non-ferrous
metal. |
|
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
LT10-100 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
100
|
LT10-120 |
10"
|
255
|
25.4/30
|
3.0/2.0
|
120
|
LT12-100 |
12"
|
305
|
30
|
3.4/2.4
|
100
|
LT12-120 |
12"
|
305
|
30
|
3.4/2.4
|
120
|
LT14-100 |
14"
|
350
|
30
|
3.4/2.4
|
100
|
LT14-120 |
14"
|
350
|
30
|
3.4/2.4
|
120
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
FM
series-
Coated
anti-kickback
dovetail
design T.C.T.
circular saw
blade.
¡¡
|
|
|
|
¡¡ |
Tooth Model:
alternate top
bevel dovetail
teeth
¡¡ |
Application: For
cutting dry
soft/hard wood
with burl;
veneer; panel
used in building
site. |
¡¡
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
FM7-40 |
7"
|
180
|
25.4
|
1.7/1.2
|
40
|
FM7-60 |
7"
|
180
|
25.4
|
1.7/1.2
|
60
|
FM9-40 |
9"
|
230
|
25.4
|
2.2/1.6
|
40
|
FM9-60 |
9"
|
230
|
25.4
|
2.2/1.6
|
60
|
FM10-40 |
10"
|
255
|
25.4
|
2.2/1.6
|
40
|
FM10-48 |
10"
|
255
|
25.4
|
2.2/1.6
|
48
|
FM10-60 |
10"
|
25.4
|
2.2/1.6
|
60
|
FM12-40 |
12"
|
305
|
30
|
2.5/2.0
|
40
|
FM12-48 |
12"
|
305
|
30
|
2.5/2.0
|
48
|
FM12-60 |
12"
|
305
|
30
|
2.5/2.0
|
60
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
HT
series-
T.C.T
circular saw
blade for
cutting
ferrous
metal
|
¡¡
|
|
¡¡
|
¡¡
|
Tooth Model:
trapeziform-flat
teeth |
Application: It is
designed for cutting
ferrous metal which
the thickness less
than 5mm.
¡¡ |
Compare to the
grinding wheel,
using this type of
saw blade has the
following
features:Good
incision¡¢high
accurateness¡¢retainable
dimension¡¢efficiency¡¢and
longest life. |
¡¡ |
¡¡
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
HT7-40 |
7"
|
180
|
25.4
|
2.6/2.0
|
40
|
HT7-60 |
7"
|
180
|
25.4
|
2.6/2.0
|
60
|
HT9-40 |
9"
|
230
|
25.4
|
3.0/2.4
|
40
|
HT9-60 |
9"
|
230
|
25.4
|
3.0/2.4
|
60
|
HT10-40 |
10"
|
255
|
30
|
3.0/2.4
|
40
|
HT10-60 |
10"
|
255
|
30
|
3.0/2.4
|
60
|
HT10-80 |
10"
|
255
|
30
|
3.0/2.4
|
80
|
HT12-60 |
12"
|
305
|
30
|
3.4/2.8
|
60
|
HT12-80 |
12"
|
305
|
30
|
3.4/2.8
|
80
|
HT12-100 |
12"
|
305
|
30
|
>3.4/2.8
|
100
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
TA
series-
T.C.T.
circular saw
blade for
cutting
aluminum
material.
¡¡
|
|
¡¡
|
¡¡
|

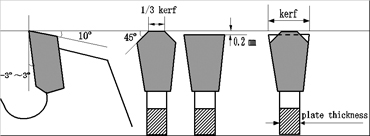

Tooth Model:
trapeziform-flat
teeth
¡¡ |
Application:
For cutting
aluminum
alloy¡¢
plastic
steel and
other
non-ferrous
metals,
which the
thickness up
to 3mm. |
|
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
TA10-80 |
10"
|
255
|
25.4
|
3.0/2.0
|
80
|
TA10-100 |
10"
|
255
|
25.4
|
30/20
|
100
|
TA10-120 |
10"
|
255
|
25.4
|
30/20
|
120
|
TA12-100 |
12"
|
305
|
30
|
3.4/2.4
|
100
|
TA12-120 |
12"
|
305
|
30
|
3.4/2.4
|
120
|
TA14-100 |
14"
|
350
|
30
|
3.4/2.4
|
100
|
TA14-120 |
14"
|
350
|
30
|
3.4/2.4
|
120
|
TA16-100 |
16"
|
400
|
30
|
3.8/2.8
|
100
|
TA16-120 |
16"
|
400
|
30
|
3.8/2.8
|
120
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
LB
series-
T.C.T.
circular saw
blade for
cutting
aluminum
alloy board
/stick
¡¡
|
|
¡¡
|
¡¡
|

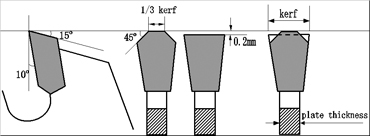

Tooth Model:
trapeziform-flat
teeth
¡¡ |
Application:
for cutting
aluminum
board/stick
which the
thickness
less than
1/3 diameter
of saw
blade; and
also can be
used to cut
plastic
steel |
|
|
¡¡
|
ITEM
NO.
|
PLATE DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
LB10-60 |
10"
|
255
|
25.4
|
3.0/2.0
|
60
|
LB12-72 |
12"
|
305
|
30
|
3.4/2.4
|
72
|
LB12-100 |
12"
|
305
|
30
|
3.4/2.4
|
100
|
LB14-60 |
14"
|
350
|
30
|
3.4/2.4
|
60
|
LB14-72 |
14"
|
350
|
30
|
3.4/2.4
|
72
|
LB16-60 |
16"
¡¡
|
400
|
30
|
3.8/2.8
|
60
|
LB18-60 |
18"
|
450
|
30
|
3.8/2.8
|
60
|
LB20-60 |
20"
|
500
|
30
|
4.2/3.2
|
60
|
Other
Specifications
and sizes
are
available
upon
customer's
requests.
|
|

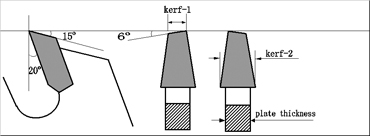

HS
series- Shim
adjustable
T.C.T.circular
scoring saw
blade.
|
¡¡
|
|
|
¡¡
|
Application:
It is
designed for
grooving
laminated
panels.
¡¡ |
The dado saw
blade must
be used with
panel sizing
blade to
avoid cracks
on the lower
side of
panel, the
kerf can be
adjusted
between
2.8mm to
3.6mm
through
adjusting
the shims. |
|
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
HS4-24a |
4"
|
110
|
20
|
2.8~3.6/2.0
|
12+12
|
HS4-24b |
4"
|
110
|
22
|
2.8~3.6/2.0
|
12+12
|
HS5-24a |
5"
|
125
|
20
|
2.8~3.6/2.0
|
12+12
|
HS5-24b |
5"
|
125
|
22
|
2.8~3.6/2.0
|
12+12
|
HS6-24 |
6"
|
150
|
20
|
2.8~3.6/2.8
|
12+12
|
HS8-24 |
8"
|
200
|
20
|
2.8~3.6/2.8
|
12+12
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
HD
series-
Adjustable
T.C.T.
circular
scoring saw
blade
|
¡¡
|
|
¡¡
|
¡¡
|

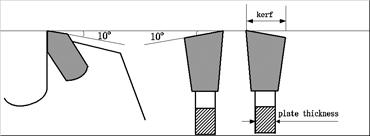

Tooth
Model:
taper
teeth.
¡¡ |
Application:
It's
used for
grooving
laminated
shaving
board.
¡¡ |
The dado
saw
blade
must be
used
with
panel
sizing
blade to
avoid
cracks
on the
lower
side of
panel,
the kerf
can be
adjusted
through
adjust
the
height
of axis
of saw
machine. |
|
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
HD4-24a |
4"
|
110
|
20
|
2.8~3.6/2.0
|
24
|
HD4-24b |
4"
|
110
|
22
|
2.8~3.6/2.0
|
24
|
HD5-24a |
5"
|
125
|
20
|
2.8~3.6/2.0
|
24
|
HD5-24b |
5"
|
125
|
22
|
2.8~3.6/2.0
|
24
|
HD6-36 |
6"
|
150
|
30
|
3.0~4.2/2.4
|
36
|
HD7-36 |
7"
|
180
|
30
|
3.0~4.2/2.4
|
36
|
HD8-36a |
8"
|
200
|
25.4
|
4.0~5.0/2.8
|
36
|
HD8-36b |
8"
|
200
|
20
|
4.0~5.0/2.8
|
36
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
GB
series-
T.C.T.
circular saw
blade for
cutting
grass/bush
|
¡¡
|
|
¡¡
|
|
¡¡
|
|

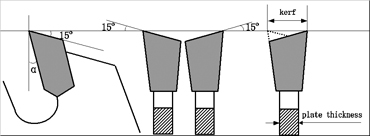

Tooth
Model:
alternate
top
bevel
teeth
¡¡ |
Application:
It's
designed
for
cutting
pruning
weed¡¢branch
etc. |
|
|
¡¡
|
ITEM NO.
|
PLATE
DIA.
|
BORE
|
KERF/P.THICKNESS
|
TEETH
|
inch
|
mm
|
mm
|
mm
|
GB7-40 |
7"
|
180
|
25.4
|
2.0/1.2
|
40
|
GB8-60 |
8"
|
200
|
25.4
|
2.0/1.2
|
60
|
GB9-60 |
9"
|
230
|
25.4
|
2.0/1.5
|
60
|
GB10-60 |
10"
|
250
|
25.4
|
2.0/1.5
|
60
|
GB12-80 |
12"
|
300
|
30
|
2.0/1.5
|
80
|
Other
Specifications
and sizes are
available upon
customer's
requests.
|
|
|
|
|
