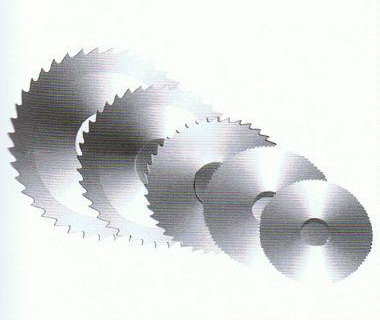

Solid Carbide Saw Blade
Hardness: HRA 90 to 93.5
Bending strength: 1,960 to 2,300MPa
Description:
Suitable for Stainless steel,
Cast iron, Mould steel, Aluminum
alloy, Copper and Acrylic
processing. Mainly for the
processing of watches and
glasses, also for the workpieces'slot processing and
parting.
|
|
Diameter (MM) |
Thickness (MM) |
Hole diameter (MM) |
Tooth (MM) |
|
8 |
0.15~4.0 |
3,4 |
4~20 |
|
10 |
0.15~4.0 |
4,5 |
6~24 |
|
12 |
0.15~4.0 |
4,5,6 |
6~30 |
|
16 |
0.15~4.0 |
5,6,8 |
6~40 |
|
20 |
0.15~4.0 |
5, 6, 8 |
6~45 |
|
22 |
0.2~5.0 |
5, 6, 8 |
8~50 |
|
25 |
0.2~5.0 |
6, 8, 10 |
10~56 |
|
30 |
0.2~5.0 |
6, 8, 10 |
10~60 |
|
32 |
0.2~6.0 |
6, 8, 10, 12.7 |
10~60 |
|
35 |
0.2~6.0 |
8, 10, 12.7 |
10~60 |
|
40 |
0.2~6.0 |
8, 10 ,12.7 |
10~80 |
|
45 |
0.2~8.0 |
10, 12.7, 16 |
10~80 |
|
50 |
0.2~8.0 |
10, 12.7, 16 |
10~100 |
|
55 |
0.2~8.0 |
12.7, 16 |
24~120 |
|
60 |
0.2~8.0 |
12.7, 13, 16 |
24~120 |
|
63 |
0.2~8.0 |
12.7, 13 ,16 |
24~120 |
|
70 |
0.2~8.0 |
16, 22, 25.4 |
24~120 |
|
75 |
0.5~8.0 |
16 ,22, 25.4 |
30~120 |
|
80 |
0.5~8.0 |
22 ,25.4 |
30~128 |
|
85 |
0.5~8.0 |
22, 25.4 |
30~128 |
|
90 |
0.5~8.0 |
22, 25.4 |
30~160 |
|
95 |
0.5~8.0 |
22, 25.4 |
30~160 |
|
100 |
0.5~8.0 |
22, 25.4 ,27 |
30~160 |
|
105 |
0.8~0.8 |
22 ,25.4, 27 |
30~160 |
|
110 |
0.8~0.8 |
22 ,25.4, 27, 32 |
30~180 |
|
115 |
0.8~0.8 |
22 ,25.4, 27, 32 |
30~180 |
|
120 |
1.0~10.0 |
22 ,25.4, 27, 32 |
30~240 |
|
125 |
1.0~10.0 |
22, 25.4 ,27 |
30~240 |
|
130 |
1.0~10.0 |
22, 25.4, 27, 32 |
30~240 |
|
150 |
1.0~10.0 |
22 ,25.4 ,27, 32 |
30~240 |
|
160 |
1.0~10.0 |
22, 25.4, 27, 32 |
40~240 |
|
180 |
1.5~12 |
25.4, 27, 32, 40 |
60~280 |
|
200 |
1.5~12 |
25.4, 27, 32, 40 |
60~280 |
|
