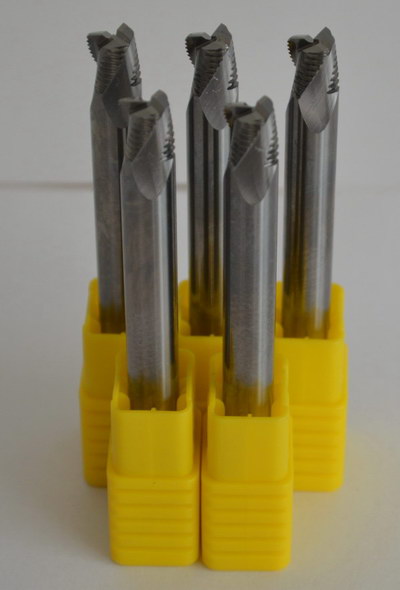

Solid Carbide
Roughing End Mills
Solid Carbide
Roughing End Mills
Material: Solid carbide
K30
Finish: TiAIN Coated or
no coating
| |

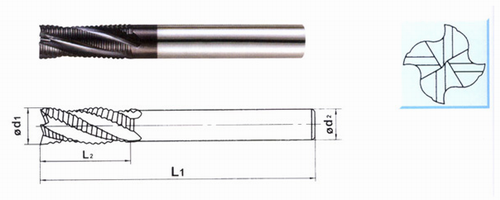

Art.No. |
Specification |
| |
NO Coating |
TiAIN Coated |
d1 |
L2 |
L1 |
d2 |
z |
| |
T010E-0500 |
T010E-0500C |
5 |
12 |
65 |
8 |
3 |
| |
T010E-0600 |
T010E-0600C |
6 |
15 |
65 |
8 |
3 |
| |
T010E-0700 |
T010E-0700C |
7 |
20 |
75 |
10 |
3 |
| |
T010E-0800 |
T010E-0800C |
8 |
20 |
75 |
10 |
3 |
| |
T010E-0900 |
T010E-0900C |
9 |
25 |
90 |
10 |
3 |
| |
T010E-1000 |
T010E-1000C |
10 |
25 |
90 |
12 |
3 |
| |
T010E-1100 |
T010E-1100C |
11 |
30 |
95 |
12 |
3 |
| |
T010E-1200 |
T010E-1200C |
12 |
30 |
95 |
12 |
3 |
| |
T010E-1300 |
T010E-1300C |
13 |
35 |
105 |
16 |
3 |
| |
T010E-1400 |
T010E-1400C |
14 |
35 |
105 |
16 |
3 |
| |
T010E-1500 |
T010E-1500C |
15 |
40 |
115 |
16 |
3 |
| |
T010E-1600 |
T010E-1600C |
16 |
40 |
115 |
16 |
3 |
| |
T010E-1800 |
T010E-1800C |
18 |
40 |
125 |
20 |
3 |
| |
T010E-2000 |
T010E-2000C |
20 |
45 |
130 |
20 |
3 |
| |
T010E-2100 |
T010E-2100C |
21 |
45 |
135 |
25 |
3 |
| |
T010E-2200 |
T010E-2200C |
22 |
45 |
135 |
25 |
3 |
| |
T010E-2300 |
T010E-2300C |
23 |
50 |
140 |
25 |
3 |
| |
T010E-2400 |
T010E-2400C |
24 |
50 |
140 |
25 |
3 |
| |
T010E-2500 |
T010E-2500C |
25 |
50 |
140 |
25 |
3 |
| |
T010E-3000 |
T010E-3000C |
30 |
55 |
150 |
32 |
3 |
