TURNING
TOOL( CARBIDE TIPPED TOOL BIT)
|

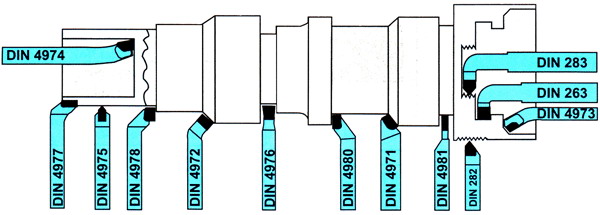

DIN & ISO Standard |
|
America Standard |
|
DIN4971-ISO1 |
DIN4978-ISO3 |
Styles:AR&AL |
|
DIN4972-ISO2 |
DIN4980-ISO6 |
Styles:BR&BL |
|
DIN4973-ISO8 |
DIN4981-ISO7 |
Styles:C |
|
DIN4974-ISO9 |
DIN282-60° - ISO12 |
Styles:D |
|
DIN4975-ISO10 |
DIN283-60° - ISO13 |
Styles:E |
|
DIN4976-ISO4 |
DIN263 - ISO11 |
Style CT |
|
DIN4977-ISO5 |
|
Styles:GR&GL |
|
CARBIDE MATERIAL ISO NO. |
Density (g/cm2) |
Bending Strength ≥(N/cm2) |
Hardness ≥HRA |
|
P25/P30 |
12.45 |
1800 |
91 |
|
K10/K20 |
14.2-14.6 |
2100 |
91 |
P25/P30 is
mainly processed on carbon steel, alloy steel, such as
forging stamping parts and castings.
K10/K20 is mainly processed on cast iron, installed on
precision lathe for continuously working on nonferrous
metal.
DIN4971-ISO1
 |
|
Shank Size |
K10/20(right) |
K10/20(left) |
P25/30(right) |
P25/30(left) |
|
Unit:mm |
Item No. |
Item No. |
Item No. |
Item No. |
|
10*10*90 |
4971-K001 |
4971-K010 |
4971-P001 |
4971-P010 |
|
12*12*100 |
4971-K002 |
4971-K020 |
4971-P002 |
4971-P020 |
|
16*16*110 |
4971-K003 |
4971-K030 |
4971-P003 |
4971-P030 |
|
20*20*125 |
4971-K004 |
4971-K040 |
4971-P004 |
4971-P040 |
|
25*25*140 |
4971-K005 |
4971-K050 |
4971-P005 |
4971-P050 |
|
32*32*170 |
4971-K006 |
4971-K060 |
4971-P006 |
4971-P060 |
|
DIN4972-ISO2
 |
|
Shank Size |
K10/20(right) |
K10/20(left) |
K25/30(right) |
K25/30(left) |
|
Unit:mm |
Item No. |
Item No. |
Item No. |
Item No. |
|
10*10*90 |
4972-K001 |
4972-K010 |
4972-KK01 |
4972-KK010 |
|
12*12*100 |
4972-K002 |
4972-K020 |
4972-KK02 |
4972-KK020 |
|
16*16*110 |
4972-K003 |
4972-K030 |
4972-KK03 |
4972-KK030 |
|
20*20*125 |
4972-K004 |
4972-K040 |
4972-KK04 |
4972-KK040 |
|
25*25*140 |
4972-K005 |
4972-K050 |
4972-KK05 |
4972-KK050 |
|
32*32*170 |
4972-K006 |
4972-K060 |
4972-KK06 |
4972-KK060 |
|
DIN4973-ISO8
 |
|
Shank Size |
Min. Boring Dia |
K10/20 |
P25/30 |
|
Unit:mm |
Unit:mm |
Item No. |
Item No. |
|
8*8*125 |
14 |
4973-K001 |
4973-P001 |
|
10*10*150 |
18 |
4973-K002 |
4973-P002 |
|
12*12*180 |
21 |
4973-K003 |
4973-P003 |
|
16*16*210 |
27 |
4973-K004 |
4973-P004 |
|
20*20*250 |
34 |
4973-K005 |
4973-P005 |
|
25*25*300 |
43 |
4973-K006 |
4973-P006 |
|
32*32*355 |
52 |
4973-K007 |
4973-P007 |
|
DIN4974-ISO9
 |
|
Shank Size |
Min. Boring Dia |
K10/20 |
P25/30 |
|
Unit:mm |
Unit:mm |
Item No. |
Item No. |
|
8*8*125 |
14 |
4974-K001 |
4974-P001 |
|
10*10*150 |
18 |
4974-K002 |
4974-P002 |
|
12*12*180 |
21 |
4974-K003 |
4974-P003 |
|
16*16*210 |
27 |
4974-K004 |
4974-P004 |
|
20*20*250 |
34 |
4974-K005 |
4974-P005 |
|
25*25*300 |
43 |
4974-K006 |
4974-P006 |
|
32*32*355 |
52 |
4974-K007 |
4974-P007 |
|
DIN4975-ISO10
 |
|
Shank Size |
K10/20 |
P25/30 |
|
Unit:mm |
Item No. |
Item No. |
|
16*10*110 |
4975-K001 |
4975-P001 |
|
20*12*125 |
4975-K002 |
4975-P002 |
|
25*16*140 |
4975-K003 |
4975-P003 |
|
32*20*170 |
4975-K004 |
4975-P004 |
|
DIN4976-ISO4
|
|
Shank Size |
K10/20 |
P25/30 |
|
Unit:mm |
Item No. |
Item No. |
|
10*10*90 |
4976-K001 |
4976-P001 |
|
12*12*100 |
4976-K002 |
4976-P002 |
|
16*16*110 |
4976-K003 |
4976-P003 |
|
20*20*125 |
4976-K004 |
4976-P004 |
|
25*25*140 |
4976-K005 |
4976-P005 |
|
32*32*170 |
4976-K006 |
4976-P006 |
|
DIN4977-ISO5
 |
|
Shank Size |
K10/20(right) |
K10/20(left) |
P25/30(right) |
P25/30(left) |
|
Unit:mm |
Item No. |
Item No. |
Item No. |
Item No. |
|
16*16*110 |
4977-K001 |
4977-K010 |
4977-P001 |
4977-P010 |
|
20*20*125 |
4977-K002 |
4977-K020 |
4977-P002 |
4977-P020 |
|
25*25*140 |
4977-K003 |
4977-K030 |
4977-P003 |
4977-P030 |
|
32*32*170 |
4977-K004 |
4977-K040 |
4977-P004 |
4977-P030 |
|
DIN4978-ISO3
 |
|
Shank Size |
K10/20(right) |
K10/20(left) |
P25/30(right) |
P25/30(left) |
|
Unit:mm |
Item No. |
Item No. |
Item No. |
Item No. |
|
16*16*110 |
4978-K001 |
4978-K010 |
4978-P001 |
4978-P010 |
|
20*12*125 |
4978-K002 |
4978-K020 |
4978-P002 |
4978-P030 |
|
25*16*140 |
4978-K003 |
4978-K030 |
4978-P003 |
4978-P030 |
|
32*32*170 |
4978-K004 |
4978-K040 |
4978-P004 |
4978-P040 |
|
DIN4980-ISO3
 |
|
Shank Size |
K10/20(right) |
K10/20(left) |
P25/30(right) |
P25/30(left) |
|
Unit:mm |
Item No. |
Item No. |
Item No. |
Item No. |
|
10*10*90 |
4980-K001 |
4980-K010 |
4980-P001 |
4980-P010 |
|
12*12*100 |
4980-K002 |
4980-K020 |
4980-P002 |
4980-P020 |
|
16*16*110 |
4980-K003 |
4980-K030 |
4980-P003 |
4980-P030 |
|
20*20*125 |
4980-K004 |
4980-K040 |
4980-P004 |
4980-P040 |
|
25*25*140 |
4980-K005 |
4980-K050 |
4980-P005 |
4980-P050 |
|
32*32*170 |
4980-K006 |
4980-K060 |
4980-P006 |
4980-P060 |
|
DIN4981-ISO7
 |
|
Shank Size |
K10/20(right) |
K10/20(left) |
P25/30(right) |
P25/30(left) |
|
Unit:mm |
Item No. |
Item No. |
Item No. |
Item No. |
|
12*8*100*3 |
4981-K001 |
4981-K010 |
4981-P001 |
4981-P010 |
|
16*10*110*4 |
4981-K002 |
4981-K020 |
4981-P002 |
4981-P020 |
|
20*12*125*5 |
4981-K003 |
4981-K030 |
4981-P003 |
4981-P030 |
|
25*16*140*6 |
4981-K004 |
4981-K040 |
4981-P004 |
4981-P040 |
|
32*20*170*8 |
4981-K005 |
4981-K050 |
4981-P005 |
4981-P050 |
|
DIN282-60° - ISO12
 |
|
Shank Size |
K10/20 |
P25/30 |
|
Unit:mm |
Item No. |
Item No. |
|
10*10*100 |
2820-K001 |
2820-P001 |
|
12*12*110 |
2820-K002 |
2820-P002 |
|
16*16*125 |
2820-K003 |
2820-P003 |
|
20*20*140 |
2820-K004 |
2820-P004 |
|
25*25*160 |
2820-K005 |
2820-P005 |
|
32*32*180 |
2820-K006 |
2820-P006 |
|
DIN283-60° - ISO13
 |
|
Shank Size |
Min Boring
Dia |
K10/20 |
P25/30 |
|
Unit:mm |
mm |
Item No. |
Item No. |
|
10*10*140 |
24 |
2830-K001 |
2830-P001 |
|
12*12*150 |
30 |
2830-K002 |
2830-P002 |
|
16*16*180 |
36 |
2830-K003 |
2830-P003 |
|
20*20*210 |
45 |
2830-K004 |
2830-P004 |
|
25*25*250 |
55 |
2830-K005 |
2830-P005 |
|
32*32*300 |
70 |
2830-K006 |
2830-P006 |
|
DIN263 - ISO11
 |
|
Shank Size |
Min Boring Dia |
K10/20 |
P25/30 |
|
Unit:mm |
mm |
Item No. |
Item No. |
|
10*10*140 |
25 |
2630-K001 |
2630-P001 |
|
12*12*150 |
30 |
2630-K002 |
2630-P002 |
|
16*16*180 |
40 |
2630-K003 |
2630-P003 |
|
20*20*210 |
50 |
2630-K004 |
2630-P004 |
|
25*25*250 |
60 |
2630-K005 |
2630-P005 |
|
32*32*300 |
85 |
2630-K006 |
2630-P006 |
|
