DIN69880 Tool Holder

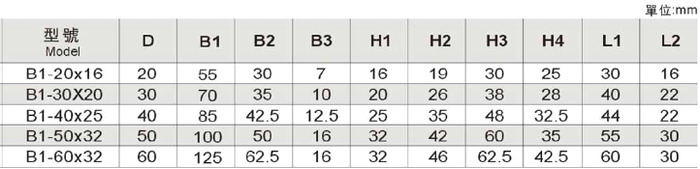

B1 Type Radial Static Holder



Specification

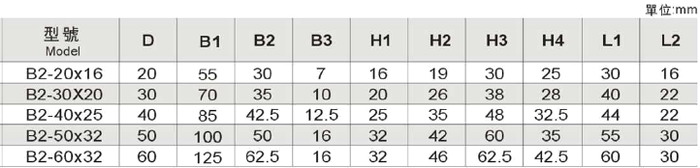

B2 Type Radial Static Holder

Specification

B3 Type Radial Static Holder

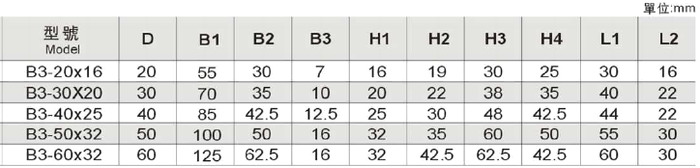

Specification

B4 Type Radial Static Holder

Specification

C1 Type Axial Static Holder

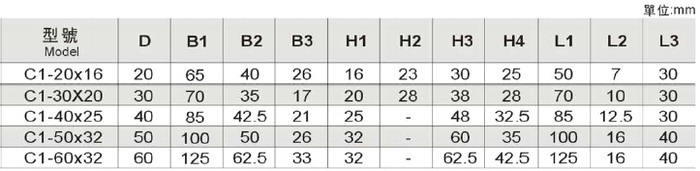

Specification

C2 Type Axial Static Holder

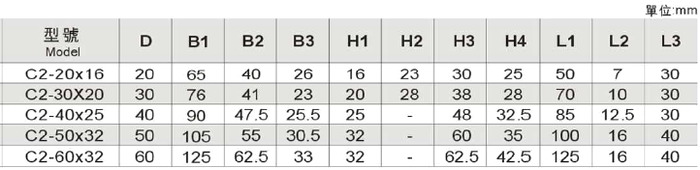

Specification

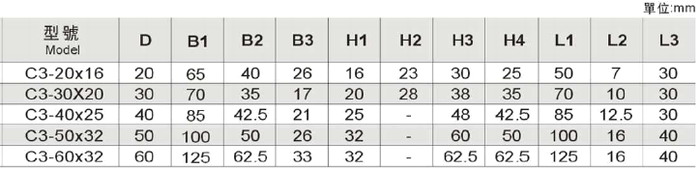

C3 Type Axial Static Holder

Specification

C4 Type Axial Static Holder

Specification

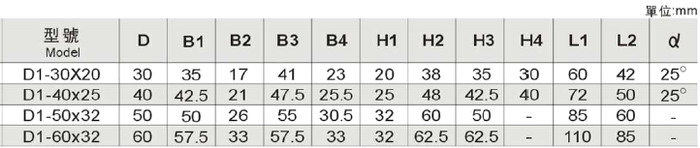

D1 Type Combined Static Holder

Specification

D2 Type Combined Static Holder

Specification

E1 Type Internal Static Holder

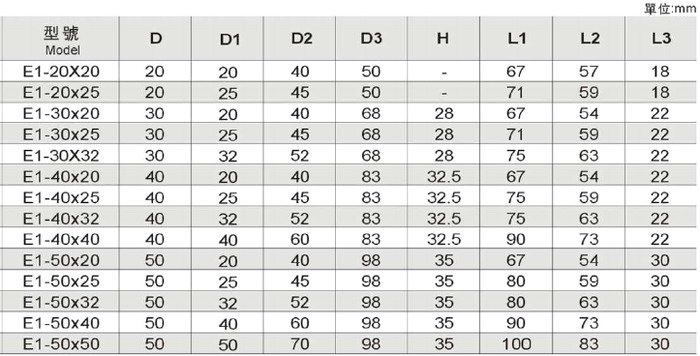

Specification

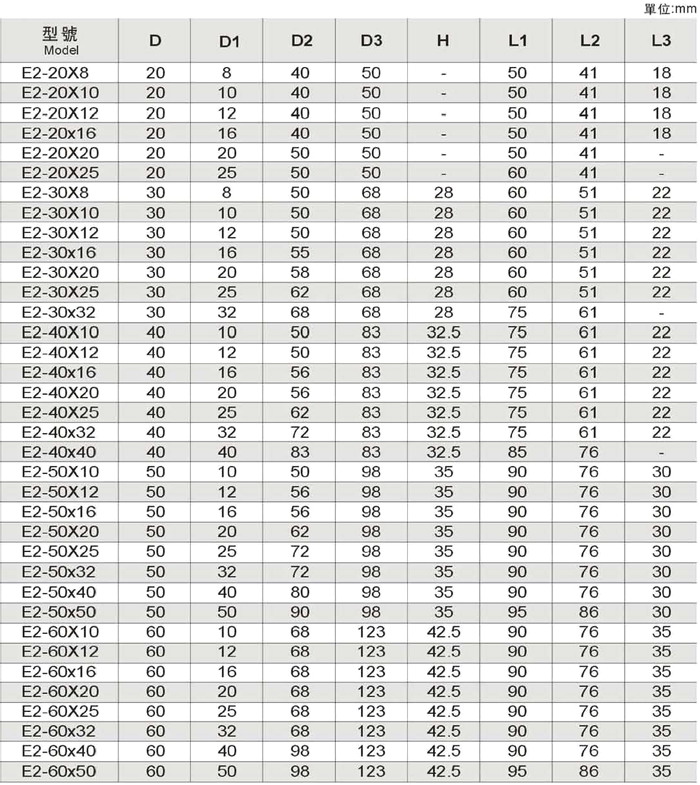

E2 Type Internal Static Holder

Specification

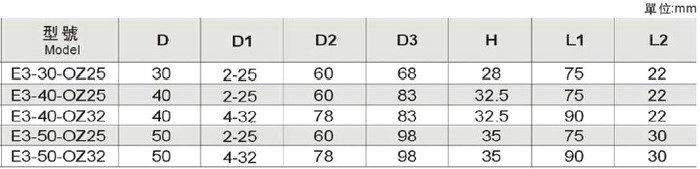

E3 Type Internal Static Holder



Specification

E4 Type Internal Static Holder

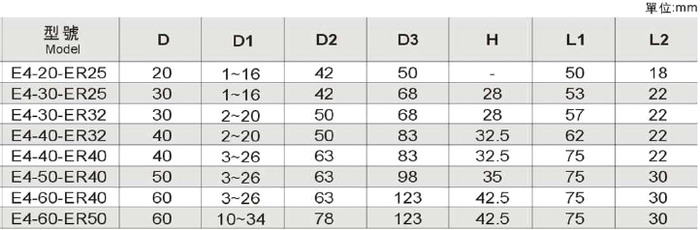

Specification

F Type Internal Static Holder

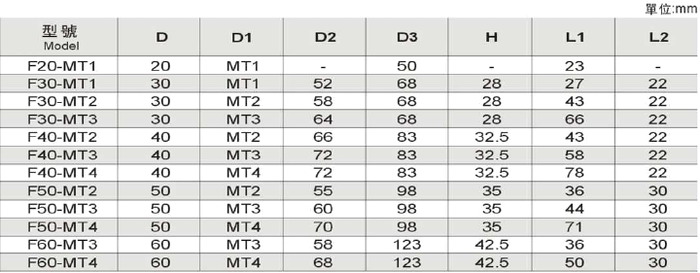

Specification

CNC lathe tool holder SBHA series

Specification

                                                                                                                                               Unit: mm

型号 Model No

刀方H1

内孔D

总高度H

总长度L

SBHA16-20

16

20

37

60

SBHA16-25

25

48

66

SBHA20-16

20

16

37

60

SBHA20-20

20

47

65

SBHA20-25

25

47

65

SBHA20-32

32

55

85

SBHA25-16

25

16

42

65

SBHA25-25

25

53

70

SBHA25-32

32

60

85

SBHA25-40

40

65

90

SBHA32-40

32

40

83

100

SBHA32-50

50

83

100
