DIGITAL CALIPERS

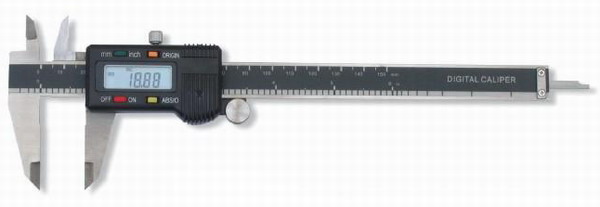

4-KEY (ABS/TOL/HOLD/MODE) DIGITAL CALIPERS WITH STANDARD SCREEN

8mm high LCD display.
Zero setting at any position.
Metric/Inch system interchange.
Manual power on/off.
Power on/off at any position, invariable measuring origin (zero).
Display window uses special quartz glass, strong ability of scratch resistance.

Relative and absolute measuring type (ABS).

Tolerance setting type (TOL).
Data holding type (HOLD).
Speed, max. and min. follow-up measuring type (MODE).
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
T305C.W-1215 0-150mm*0.01/0-6in*0.0005 50 15.2 17.8 51.3*26.8*33.4
T306C.W-1215 0-150mm*0.01/0-6in*0.0005  50  15.2  17.8  51.3*26.8*33.4
T307C.W-1215  0-150mm*0.01/0-6in*0.0005  50  15.2  17.8  51.3*26.8*33.4
T308C.W-1215  0-150mm*0.01/0-6in*0.0005  50  15.2  17.8  51.3*26.8*33.4
T305C.W-1220 0-200mm*0.01/0-8in*0.0005 50 20.7 22 58.5*33.5*31
T306C.W-1220  0-200mm*0.01/0-8in*0.0005  50  20.7  22  58.5*33.5*31
T307C.W-1220  0-200mm*0.01/0-8in*0.0005  50  20.7  22  58.5*33.5*31
T308C.W-1220  0-200mm*0.01/0-8in*0.0005  50  20.7  22  58.5*33.5*31
T305C.W-1230 0-300mm*0.01/0-12in*0.0005 20 12.9 15.9 46.3*30.4*37.7
T306C.W-1230  0-300mm*0.01/0-12in*0.0005  20  12.9  15.9  46.3*30.4*37.7
T307C.W-1230  0-300mm*0.01/0-12in*0.0005  20  12.9  15.9  46.3*30.4*37.7
T308C.W-1230  0-300mm*0.01/0-12in*0.0005  20  12.9  15.9  46.3*30.4*37.7
　

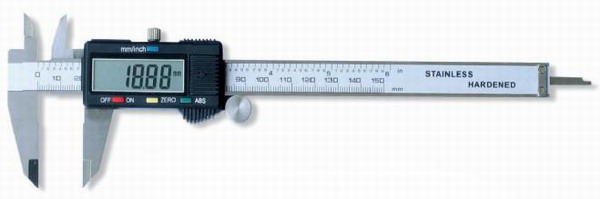

4-KEY (ABS/TOL/HOLD/MODE) DIGITAL CALIPERS WITH LARGE SCREEN

8mm high LCD display.
Zero setting at any position.
Metric/Inch system interchange.
Manual power on/off.
Power on/off at any position, invariable measuring origin (zero).
Display window uses special quartz glass, strong ability of scratch resistance.

Relative and absolute measuring type (ABS).

Tolerance setting type (TOL).
Data holding type (HOLD).
Speed, max. and min. follow-up measuring type (MODE).
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)  Remark
T310A.W-1215 0-150mm*0.01/0-6in*0.0005 50 15.2 17.8 51.3*26.8*33.4  ABS
T311A.W-1215 0-150mm*0.01/0-6in*0.0005  50  15.2  17.8  51.3*26.8*33.4   TOL
T312A.W-1215  0-150mm*0.01/0-6in*0.0005  50  15.2  17.8  51.3*26.8*33.4   HOLD
T313A.W-1215  0-150mm*0.01/0-6in*0.0005  50  15.2  17.8  51.3*26.8*33.4   MODE
T310A.W-1220 0-200mm*0.01/0-8in*0.0005 50 20.7 22 58.5*33.5*31  ABS
T311A.W-1220  0-200mm*0.01/0-8in*0.0005  50  20.7  22  58.5*33.5*31   TOL
T312A.W-1220  0-200mm*0.01/0-8in*0.0005  50  20.7  22  58.5*33.5*31   HOLD
T313A.W-1220  0-200mm*0.01/0-8in*0.0005  50  20.7  22  58.5*33.5*31   MODE
T310A.W-1230 0-300mm*0.01/0-12in*0.0005 20 12.9 15.9 46.3*30.4*37.7  ABS
T311A.W-1230  0-300mm*0.01/0-12in*0.0005  20  12.9  15.9  46.3*30.4*37.7   TOL
T312A.W-1230  0-300mm*0.01/0-12in*0.0005  20  12.9  15.9  46.3*30.4*37.7   HOLD
T313A.W-1230  0-300mm*0.01/0-12in*0.0005  20  12.9  15.9  46.3*30.4*37.7   MODE
