DIGITAL CALIPERS

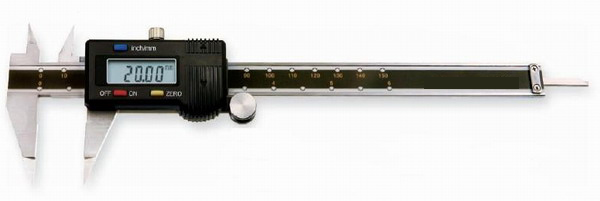

POINTED-JAW DIGITAL CALIPER

กก

Pointed-Jaw design.
Zero setting at any position.
Metric/Inch system interchange.
Manual power on/off.
Power on/off at any position, invariable measuring origin (zero).
Display window uses special quartz glass, strong ability of scratch resistance.
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
T304B-1210A  0-100mm*0.01/0-4in*0.0005  100  17.8  21.3  42.5*40.5*32.2
T304B.W-1215A 0-150mm*0.01/0-6in*0.0005 50 15.2 17.8 51.3*26.8*33.4
 T304B.W-1220A  0-200mm*0.01/0-8in*0.0005  50  20.7  22.0  58.5*33.5*31.0
T304B.W-1230A  0-300mm*0.01/0-12in*0.0005  20  12.9  15.9  46.3*30.4*37.7

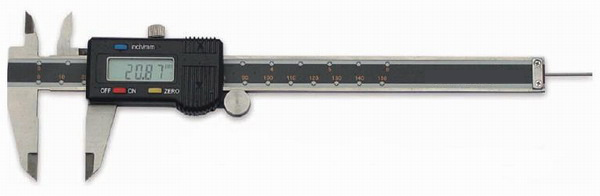

DIGITAL CALIPER WITH COLUMNIFORM DEPTH BLADE

Zero setting at any position.
Manual power on/off or auto power off..
Metric/Inch system interchange.
Round depth rod for mini diameter hole.
Power on/off at any position, invariable measuring origin (zero).
Display window uses special quartz glass, strong ability of scratch resistance.
Multi-Display module can be chosen .(Please contact our sales).
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
T304B-1210R  0-100mm*0.01/0-4in*0.0005  100  17.8  21.3  42.5*40.5*32.2
T304B.W-1215R 0-150mm*0.01/0-6in*0.0005 50 15.2 17.8 51.3*26.8*33.4
 T304B.W-1220R  0-200mm*0.01/0-8in*0.0005  50  20.7  22.0  58.5*33.5*31.0
T304B.W-1230R  0-300mm*0.01/0-12in*0.0005  20  12.9  15.9  46.3*30.4*37.7
กก

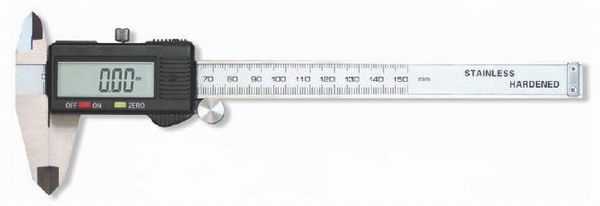

DIGITAL CALIPER WITH ONLY METRIC SYSTEM

12mm high LCD display.
Zero setting at any position.
Metric system only.
Manual power on/off.
Power on/off at any position, invariable measuring origin (zero).
Display window uses special quartz glass, strong ability of scratch resistance.
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
T309A-1210M 0-100mm*0.01 100  17.8  21.3  42.5*40.5*32.2
T309A.W-1215M 0-150mm*0.01 50 15.2 17.8 51.3*26.8*33.4
 T309A.W-1220M  0-200mm*0.01 50  20.7  22.0  58.5*33.5*31.0
T309A.W-1230M 0-300mm*0.01 20  12.9  15.9  46.3*30.4*37.7

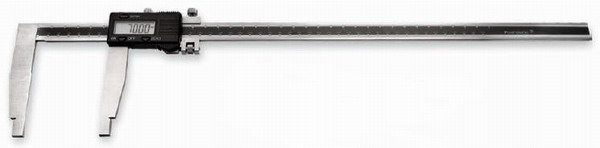

IV DIGITAL CALIPER

LCD display.
Zero setting at any position.
Metric/Inch system interchange.
Manual power on/off.
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
T304B.WK-4245 0-450mm*0.01/0-18in*0.0005  10  11.3  13.2  64.5*37.5*20.7
T304B.WK-4250 0-500mm*0.01/0-20in*0.0005 10 12.3 14.2 64.5*37.5*20.7
 T304B.WK-4260  0-600mm*0.01/0-24in*0.0005  10  14.1 16.2  64.5*37.5*20.7

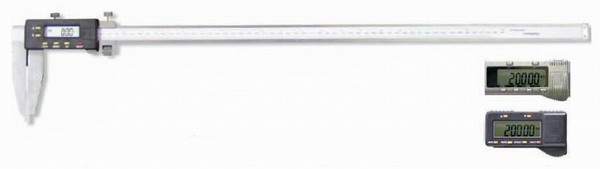

LCD display.
ABS function.
Zero setting at any position.
Preset data input.
Metric/Inch system interchange.
Manual power on/off.
Item No. Specification QTY/Carton N.W. (kg) G.W. (kg) Meas (cm)
T362.WK-4160 0-600mm*0.01/0-24in*0.0005  10  17.5  20  81.0*19.5*15.5
T362.WK-41100 0-1000mm*0.01/0-40in*0.0005 10 60 62 120*19.5*15.5
